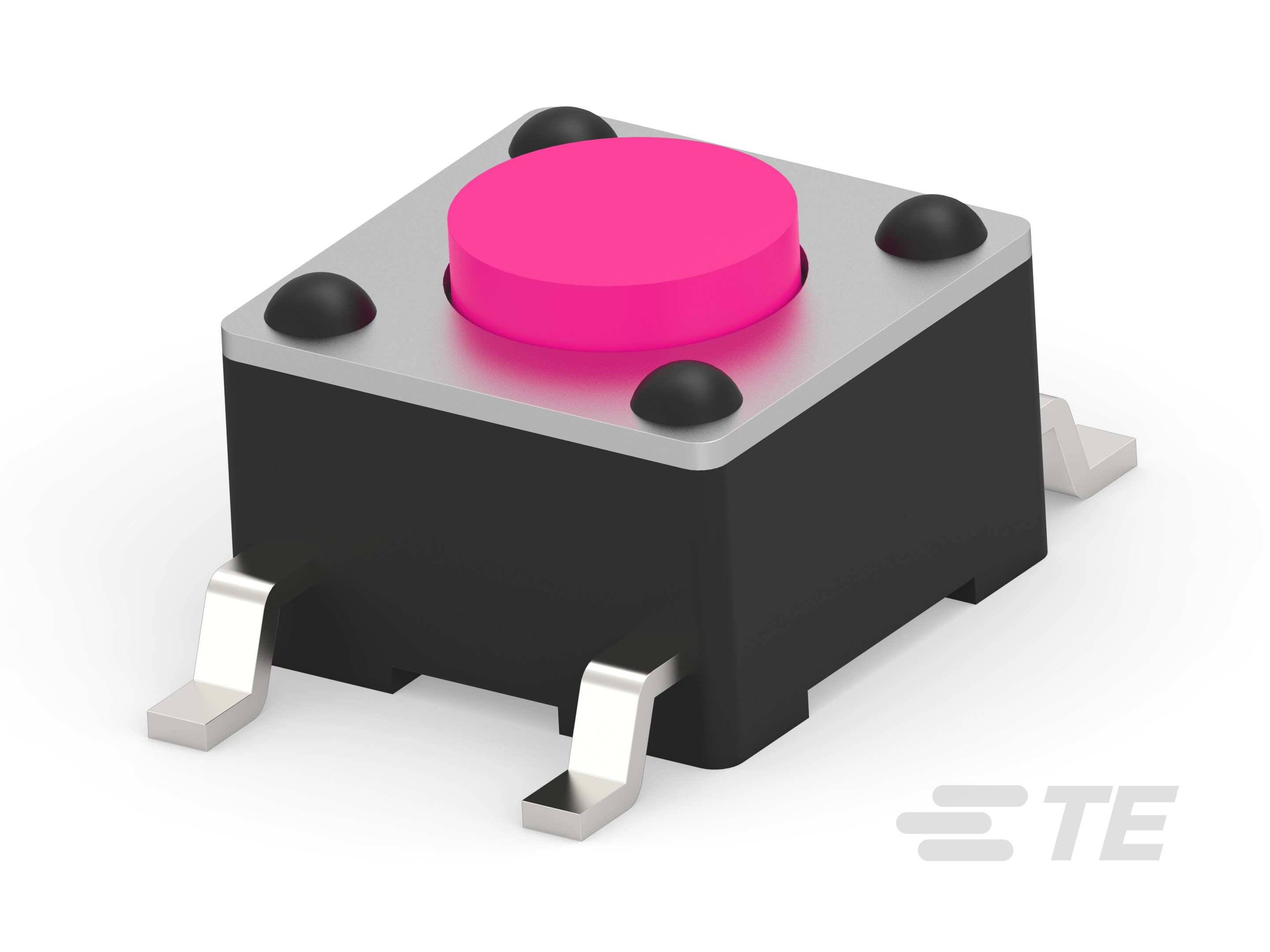

Specification	1977223-5

Actuator Height off PCB (Vertical)	4.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating (Current)	0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Outline Length	6 mm
Outline Width	6 mm
Switch Function	Off-Mom
Termination Style	Gull Wing

ALCOSWITCH FSMJSMA Series

Part	Switch Travel	Mechanical Life (Cycles)	Actuator Material	Operating Force	Termination Style	Actuator Height off PCB (Vertical)	Actuator Type	Mounting Type	Contact Rating (Current)	Operating Temperature (Max)	Operating Temperature (Min)	Switch Function	Circuit	Illumination	Actuator Orientation	Outline Width	Outline Length
TE Connectivity AMP Connectors 1571563-1	0.25 mm	1000000 Cycles	Nylon Polyamide (PA)	70 gf	Gull Wing	5 mm	Standard	Surface Mount	0.05 A	85 °C	-35 °C	Off-Mom	SPST-NO	Non-Illuminated	Top Actuated	6 mm	6 mm
