Description

General part information

DT04-12PA-CL11

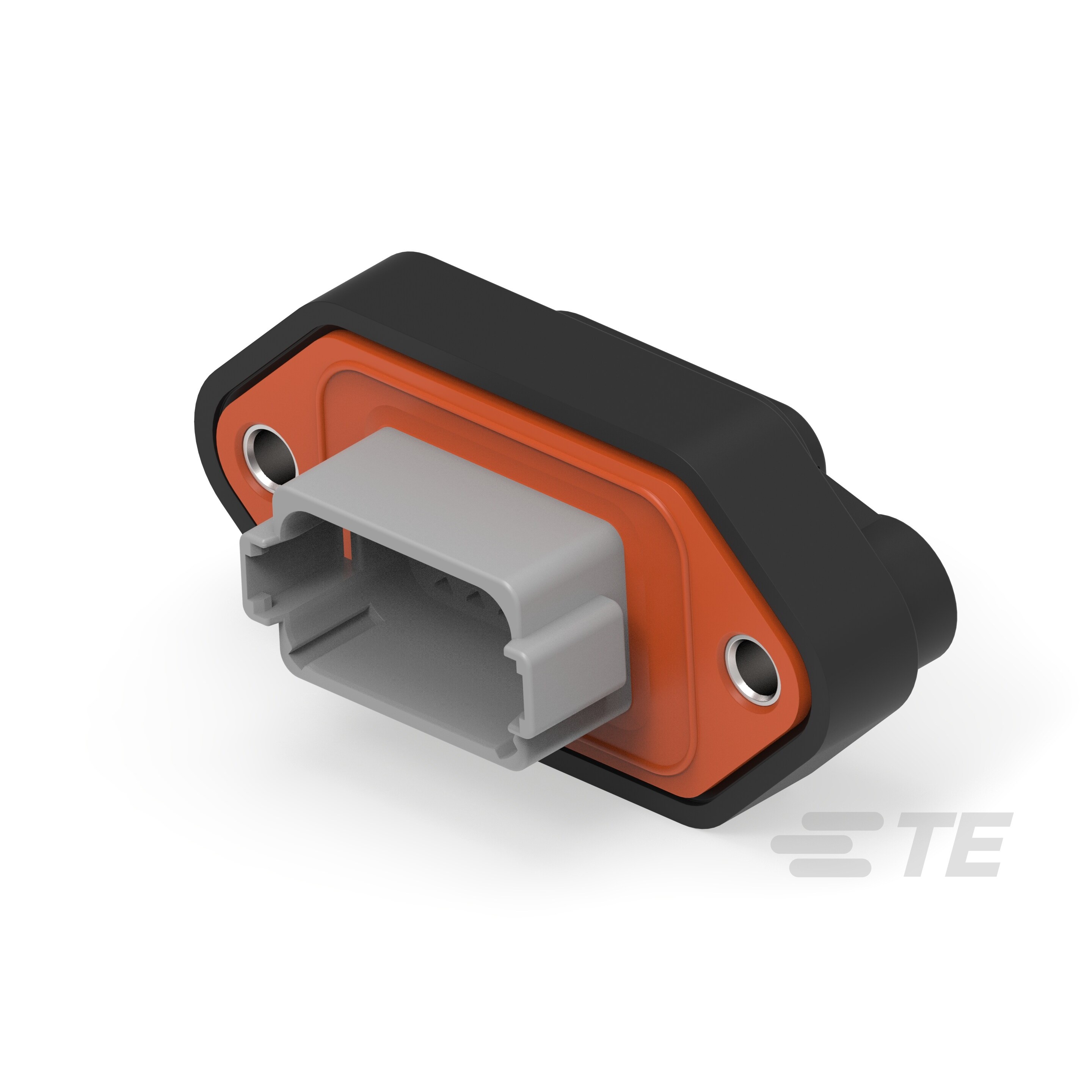

12 Position Housing, Housing for Male Terminals, Wire-to-Wire, 4.44 mm [.175 in] Centerline, Sealable, Gray, Wire & Cable, Power, Panel Mount

Technical Specifications

Parameters and characteristics for this part

SpecificationDT04-12PA-CL11
ColorGray
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeMale Pin
Fastening TypeLatch Holder
FeaturesIP68, IP6K9K, Cap (Cover), Reduced Wire Seals
Insulation MaterialNylon, Glass Filled, Polyamide (PA)
Mounting TypeFree Hanging (In-Line), Panel Mount
Number of Positions12
Number of Rows2
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Pitch0.359 in
Row Spacing0.175 in
