L08-01GBAS-MR7001
ActiveMcGill Microwave Systems
LED LIGHT GUIDE, 5MM, METAL, M8X
L08-01GBAS-MR7001
ActiveMcGill Microwave Systems
LED LIGHT GUIDE, 5MM, METAL, M8X
Description
General part information
L08-01GBAS-MR7001

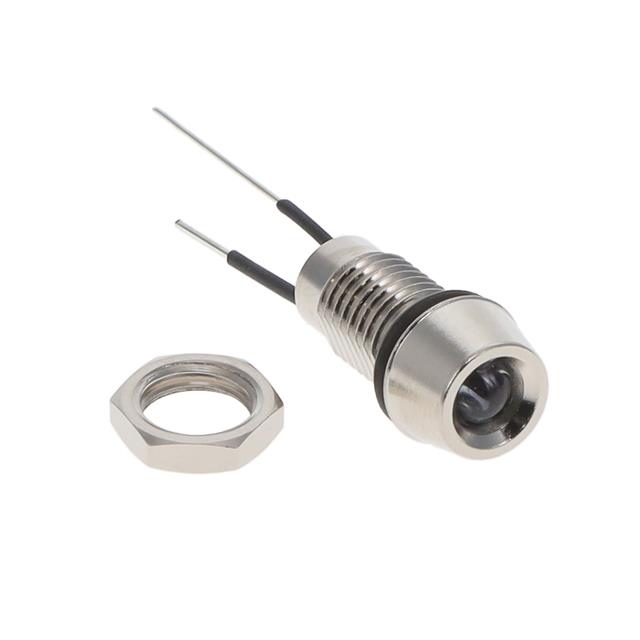

LED Panel Indicator Green Clear 15° 3.3V 30mA Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | L08-01GBAS-MR7001 |
|---|---|
| Current | 30 mA |
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Color | Colorless |
| Lens Diameter | 5 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 22000 mcd |
| Panel Cutout Dimension | 0.32 " |
| Panel Cutout Shape | Round |
| Ratings | If (Max), Vf (Typ) |
| Termination Style | Wire Leads |
| Type | LED |
| Viewing Angle | 15 ° |
| Voltage | 3.3 V |
