17982-5PG-300

Active

Conxall/Switchcraft

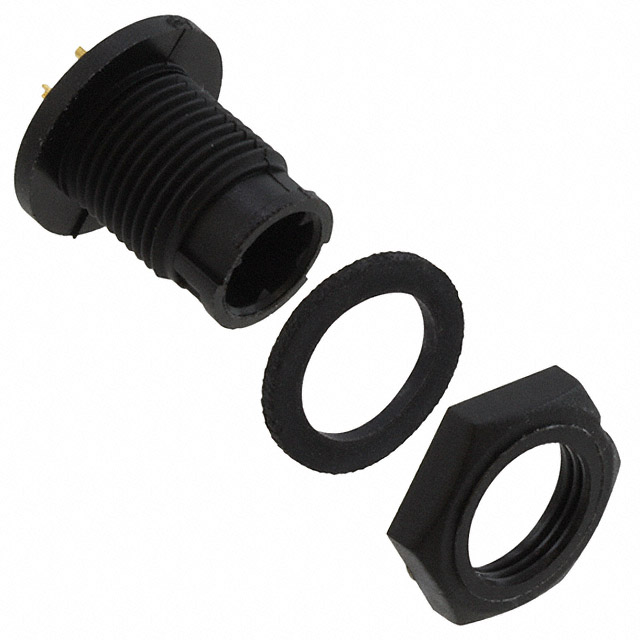

CONN RCPT MALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	17982-5PG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN RCPT MALE 5P GOLD SLDR CUP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Current Rating (Amps)	Ingress Protection	Color	Connector Type	Mounting Feature	Contact Material	Shielding	Material Flammability Rating	Contact Finish - Mating	Primary Material	Fastening Type	Orientation	Applications
Conxall/Switchcraft 17982-5PG-300	85 °C	-40 °C	600 VAC	4 A	IP67 - Dust Tight, Waterproof	Black	Male Pins, Receptacle	Bulkhead - Front Side Nut	Copper Alloy	Unshielded	UL94 HB	Gold	Plastic	Bayonet Lock	B	Data, Industrial, Instrumentation, Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
