S2509

Active

LAPP

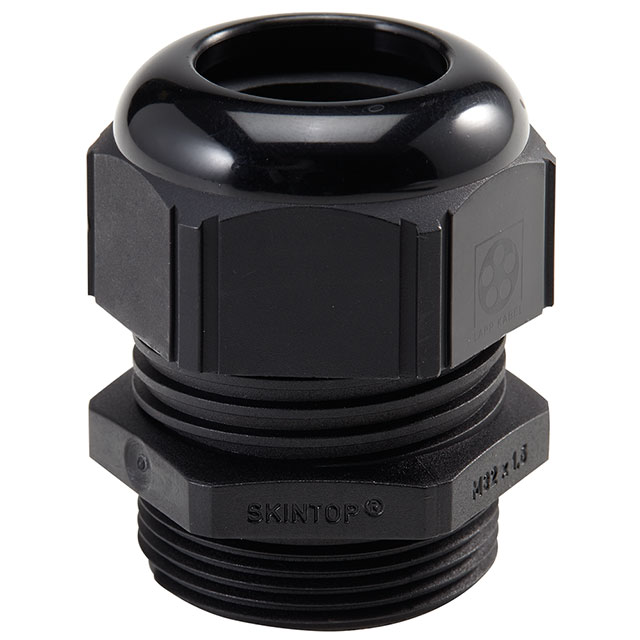

CABLE GLAND 4-10MM M16 POLYAMIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S2509

Active

LAPP

CABLE GLAND 4-10MM M16 POLYAMIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S2509	- Series

Color	Black	Gray, Black
Includes	O-Ring, Locknut	O-Ring, Locknut
Ingress Protection	NEMA 1, IP69, IP68, NEMA 12	NEMA 1, IP69, IP68, NEMA 12
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	9 - 34 mm
Outside Cable Diameter (Max)	-	14 - 44 mm
Outside Cable Diameter (Max)	-	0.551 - 1.732 in
Outside Cable Diameter (Max)	-	25 - 31 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "	0.197 - 1.772 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm	0.354 - 45 mm
Outside Cable Diameter (Min)	-	1.5 - 39 mm
Outside Cable Diameter (Min)	-	0.059 - 1.535 in
Outside Cable Diameter (Min)	-	13 mm
Outside Cable Diameter (Min) [Min]	0.157 in	0.138 - 1.102 in
Outside Cable Diameter (Min) [Min]	4 mm	3.5 - 28 mm
Thread Length	8 mm	8 - 15 mm
Thread Length	0.315 in	0.315 - 0.591 in
Thread Size	M16x1.5	3/4 NPT, PG9, M50x1.5, PG7, 1/2" NPT, M40x1.5, PG13, M25x1.5, 3/8" NPT, M16x1.5, PG11, PG48, M20x1.5, PG16, M32x1.5, PG42, PG36, M12x1.5, PG29, PG21, 1" NPT
Type	Cable Gland	Cable Gland

- Series

CABLE GLAND 9-16MM 3/4" NPT

...

Part	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Thread Length	Thread Length	Color	Operating Temperature [Max]	Operating Temperature [Min]	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Includes	Outside Cable Diameter (Max) [Max] [diameter]
LAPP S1234	3/4 NPT	9 mm	0.354 in	Cable Gland	0.591 in	15 mm	Gray	100 °C	-40 °C	Polyamide (PA), Nylon	0.63 "	16 mm
LAPP S1109	PG9			Cable Gland	0.315 in	8 mm	Gray	100 °C	-40 °C	Polyamide (PA), Nylon	0.315 in	8 mm	3.5 mm	0.138 in
LAPP S1636	M50x1.5	24 mm	0.945 in	Cable Gland	0.472 in	12 mm	Gray	100 °C	-40 °C	Polyamide (PA), Nylon	1.142 in	29 mm			IP68, IP69, NEMA 1, NEMA 12
LAPP S2207	PG7	1.5 mm	0.059 in	Cable Gland	0.315 in	8 mm	Black	100 °C	-40 °C	Polyamide (PA), Nylon	0.197 in	5 mm
LAPP S2542		34 mm	1.339 in	Cable Gland	0.472 in	12 mm	Black	100 °C	-40 °C	Polyamide (PA), Nylon	1.772 in	45 mm			IP68, IP69, NEMA 1, NEMA 12	Locknut, O-Ring
LAPP S1212	1/2" NPT			Cable Gland	0.591 in	15 mm	Gray	100 °C	-40 °C	Polyamide (PA), Nylon		0.354 in	4 mm	0.157 in			9 mm
LAPP S1209	PG9	2 mm	0.079 in	Cable Gland	0.315 in	8 mm	Gray	100 °C	-40 °C	Polyamide (PA), Nylon	0.236 in	6 mm
LAPP S2529	M40x1.5			Cable Gland	0.394 in	10 mm	Black	100 °C	-40 °C	Polyamide (PA), Nylon	1.102 in		16 mm	0.63 in	IP68, IP69, NEMA 1, NEMA 12	Locknut, O-Ring	28 mm
LAPP S1213	PG13			Cable Gland	0.354 in	8.99 mm	Gray	100 °C	-40 °C	Polyamide (PA), Nylon		0.354 in	4 mm	0.157 in			9 mm
LAPP S2209	PG9	2 mm	0.079 in	Cable Gland	0.315 in	8 mm	Black	100 °C	-40 °C	Polyamide (PA), Nylon	0.236 in	6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.03
		10	$ 2.31
		25	$ 2.08
		50	$ 1.93
		100	$ 1.79
		250	$ 1.62
		500	$ 1.50
		1000	$ 1.40
		2500	$ 1.28

Description

General part information

- Series

Cable Gland Polyamide (PA), Nylon M16x1.5 Black
