28A4155-0A2
ActiveLaird Technologies EMI

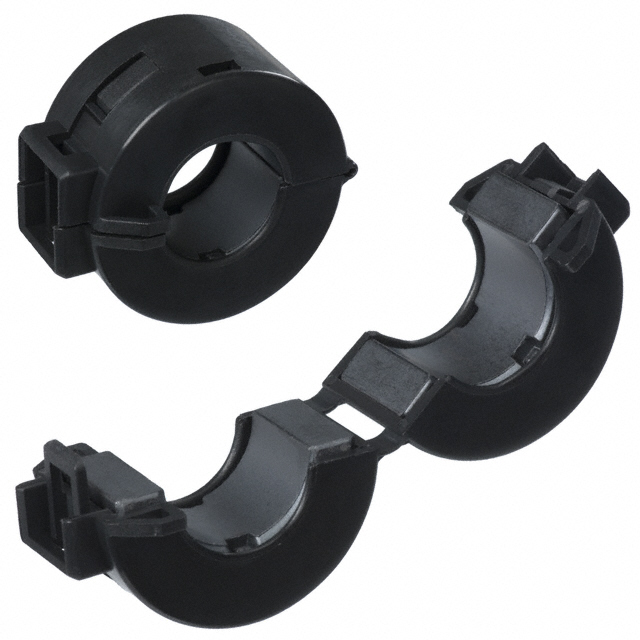

FERRITE CORE 120 OHM HINGED 15MM
28A4155-0A2
ActiveLaird Technologies EMI
FERRITE CORE 120 OHM HINGED 15MM
Description
General part information
28A4155-0A2
Hinged (Snap On) Free Hanging Ferrite Core 120Ohm @ 100MHz ID 0.591" Dia (15.00mm) OD 1.307" W x 1.134" H (33.20mm x 28.80mm) Length 0.858" (21.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28A4155-0A2 |
|---|---|
| Design | Hinged (Snap On) |
| Impedance | 120 Ohm |
| Inner Dimension (Diameter) | 0.591 in |
| Length | 0.858 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 1.134 in |
| Outer Dimension Width | 1.307 in |
| Type | Round |
