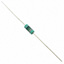

IM04EB100K
ObsoleteVishay Dale
FIXED IND 10UH 290MA 900 MOHM TH
IM04EB100K
ObsoleteVishay Dale
FIXED IND 10UH 290MA 900 MOHM TH
Description
General part information
IM04EB100K
FIXED IND 10UH 290MA 900 MOHM TH
Technical Specifications
Parameters and characteristics for this part
| Specification | IM04EB100K |
|---|---|
| Current Rating | 0.29 A |
| DC Resistance (DCR) (Max) | 900 mOhm |
| Frequency - Self Resonant | 45 MHz |
| Inductance | 10 µH |
| Inductance Frequency - Test | 2.5 MHz |
| Material - Core | Iron |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 55 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.156 in |
| Size / Dimension Length | 0.375 in |
| Tolerance | 10 % |
| Type | Molded |
