Specification	YR0K50100LS000BE

Board Type	Evaluation Platform

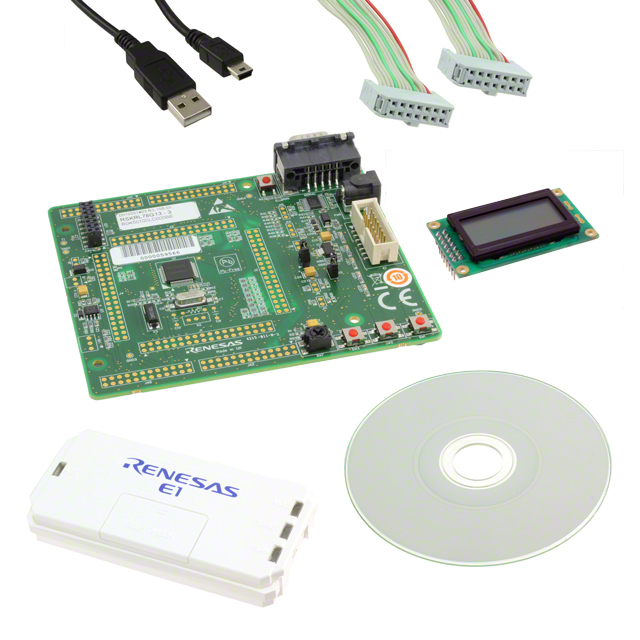

Contents	Board, E1 Programmer, LCD, Cable
Core Processor	RL78
Mounting Type	Fixed
Platform	Renesas Starter Kit (RSK) RL78/G13
Suggested Programming Environment	e2 studio
Type	MCU 16-Bit
Utilized IC / Part	RL78/G13, R5F100

R5F100 Series

Part	Package Name	Oscillator Type	Program Memory Type	A/D Resolution (bits)	A/D Channels	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)	Core Size (Bit Width)	RAM Size Depth	RAM Size Width	Program Memory Depth	Program Memory Width	Program Memory Size	Package Length	Package Width	Peripherals	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Number of I/O	Speed	Core Processor	Mounting Type
Renesas Electronics Corporation R5F11W67ASM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68ASM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68ASM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#30	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W67DSM#30	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W67DSM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
