Description
General part information

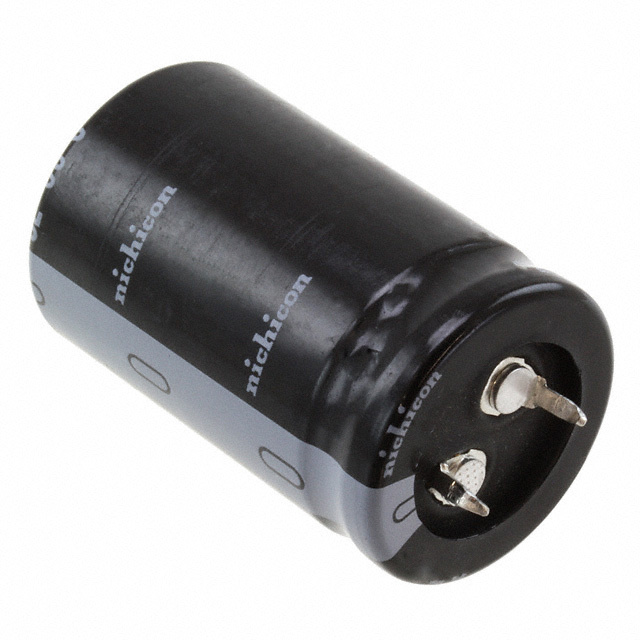

LLS2D102MELA
1000 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LLS2D102MELA |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 µF |
| Height - Seated (Max) | 1.575 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 4.92 A, 3.28 A |
| Size / Dimension Diameter | 0.984 in |
| Tolerance | 20 % |
| Voltage - Rated | 200 VDC |
