Description
General part information

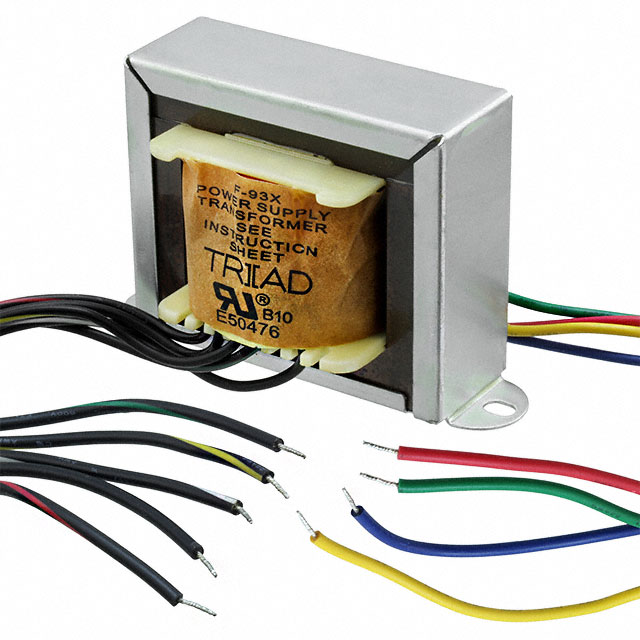

F-93X
CHASSIS MOUNT TRANSFORMER, POWER, ISOLATING, 115V, 40V, 60HZ, UNIVERSAL WINDING
Technical Specifications
Parameters and characteristics for this part
| Specification | F-93X |
|---|---|
| Center Tap | No |
| Current - Output (Max) | 750 mA |
| Height - Seated (Max) | 2.6 in |
| Mounting Type | Chassis Mount |
| Power - Max | Varies |
| Primary Winding(s) | Single, Multiple Taps |
| Secondary Winding(s) | Multiple Taps, Single |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2.25 in |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 10V, 40V, 20V |
| Weight | 2.4 lbs |
