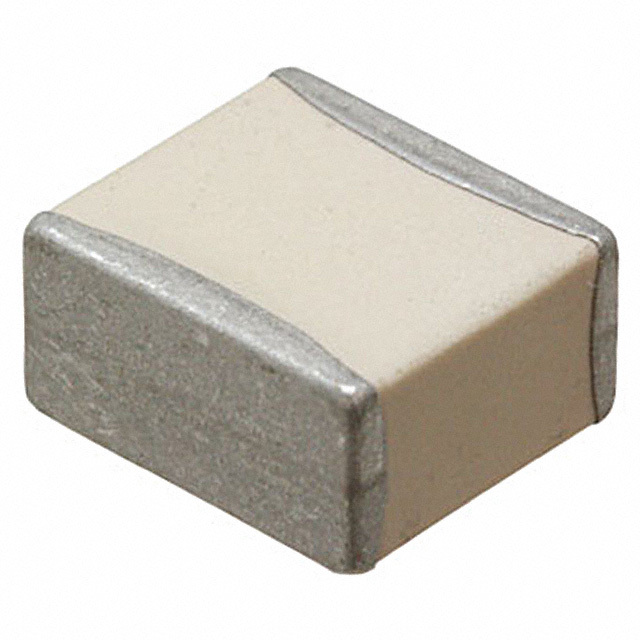

HQCCAA102KAT6A
ObsoleteKYOCERA AVX
CAP CER 1000PF 1KV NP0 2325
HQCCAA102KAT6A
ObsoleteKYOCERA AVX
CAP CER 1000PF 1KV NP0 2325
Description
General part information
HQCCAA102KAT6A
1000 pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 2325 (5864 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | HQCCAA102KAT6A |
|---|---|
| Applications | High Frequency, RF, Microwave |
| Capacitance | 1000 pF |
| Features | Low Loss, Ultra Low ESR, High Q, High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2325 (5864 Metric) |
| Size / Dimension Length | 0.23 in |
| Size / Dimension Width | 0.25 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.165 in |
| Tolerance | 10 % |
| Voltage - Rated | 1000 V |
