PB7B2RS7M1CAL00Y500
ActiveTE Connectivity AMP Connectors

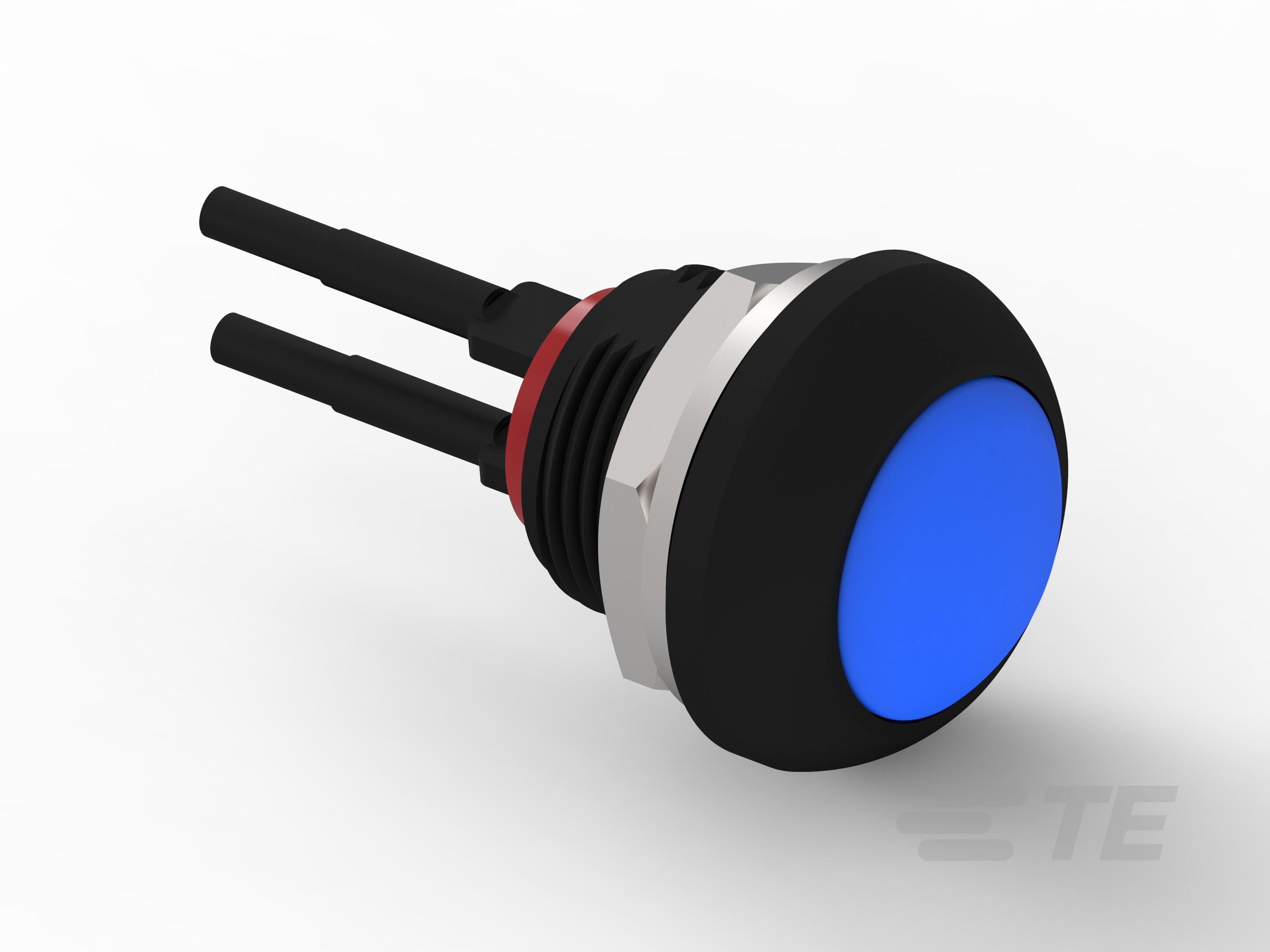

PB ON/OFF RC BLU M1 TERM IP68 500MM LHS
PB7B2RS7M1CAL00Y500
ActiveTE Connectivity AMP Connectors
PB ON/OFF RC BLU M1 TERM IP68 500MM LHS
Description
General part information
ALCOSWITCH PB7 Series
General Purpose Push Button Switch, Single Pole - Single Throw Configuration (Pole-Throw), Single Actuator, Flush Actuator, ALCOSWITCH PB7
Technical Specifications
Parameters and characteristics for this part
| Specification | PB7B2RS7M1CAL00Y500 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round, Domed |
| Circuit | SPST-NC |
| Color - Actuator/Cap | Blue |
| Current Rating | 125 mA, 200 mA |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Panel Cutout Diameter | 13.6 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 50 V |
