VJ0402A121JNAAJ
ObsoleteVishay Dale

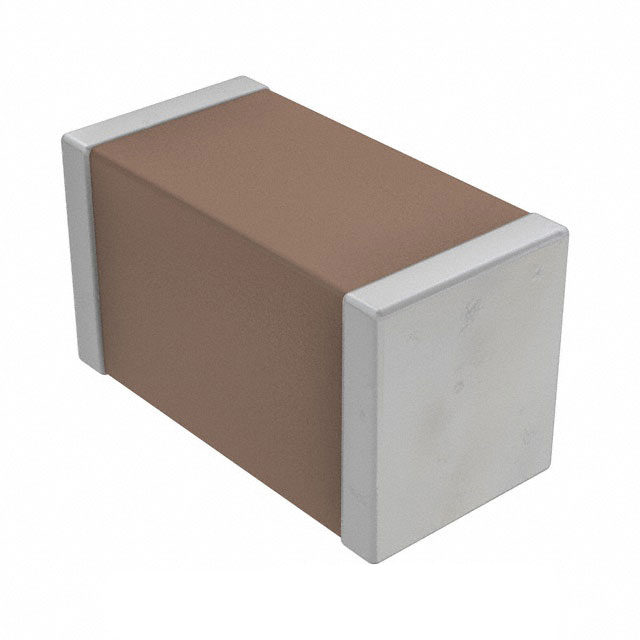

CAP CER 120PF 50V 0402 EPOXY
VJ0402A121JNAAJ
ObsoleteVishay Dale
CAP CER 120PF 50V 0402 EPOXY
Description
General part information
VJ0402A121JNAAJ
120 pF ±5% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | VJ0402A121JNAAJ |
|---|---|
| Applications | General Purpose |
| Capacitance | 120 pF |
| Features | Non-Magnetic, Epoxy Mountable |
| Mounting Type | Surface Mount, MLCC, Epoxy |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.024 in |
| Tolerance | 5 % |
| Voltage - Rated | 50 V |
