Specification	RP20-2415SA-HC

Applications	ITE (Commercial)
Current - Output (Max)	1.33 A
Efficiency	91 %
Features	OCP, OVP, UVLO, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Package Leads	4 Leads

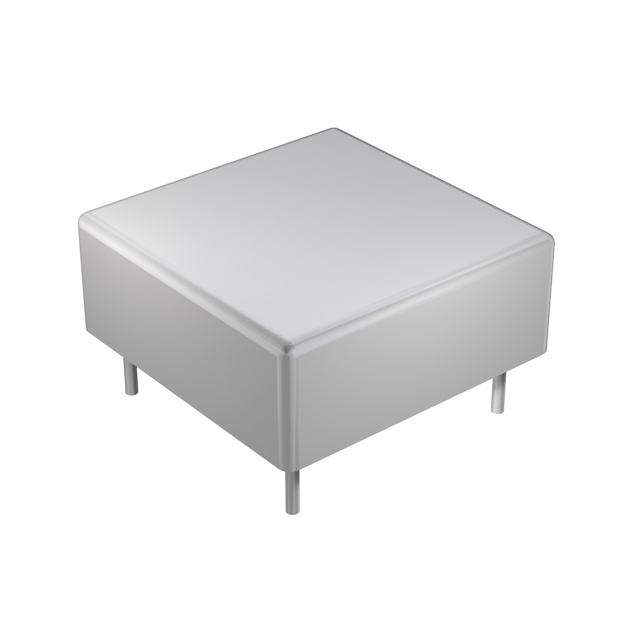

Package Name	6-SIP Module
Power (Watts)	20 W
Size / Dimension Height	0.39 in
Size / Dimension Length	1 in
Size / Dimension Width	1 in
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	18 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	15 V

RP20-A Series

...

Part	Voltage - Isolation	Mounting Type	Voltage - Output 1	Voltage - Input (Min)	Power (Watts)	Features	Voltage - Input (Max)	Number of Outputs	Efficiency	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Applications	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output (Max)	Type	Control Features	Voltage - Output 2	Package Leads	Package Name
Recom Power RP20-1205SA/P	1.6 kV	Through Hole	5 V	9 V	20 W	OCP OVP Remote On/Off SCP UVLO	18 V	1	89 %	0.39 in	1 in	1 in	ITE (Commercial)	6-SIP Module	90 °C	-40 °C	4 A	Isolated Module	Active High Enable
Recom Power RP20-2412SA/P	1.6 kV	Through Hole	12 V	18 V	20 W	OCP OVP Remote On/Off SCP UVLO	36 V	1	90 %	0.39 in	1 in	1 in	ITE (Commercial)	6-SIP Module	90 °C	-40 °C	1.67 A	Isolated Module	Active High Enable
Recom Power RP20-1215DA	1.6 kV	Through Hole	15 V	9 V	20 W	OCP OVP SCP UVLO	18 V	2	90 %	0.39 in	1 in	1 in	ITE (Commercial)		90 °C	-40 °C	677 mA	Isolated Module		-15 V	5 Leads	6-SIP Module
Recom Power RP20-4815DA/N-HC	1.6 kV	Through Hole	15 V	36 V	20 W	OCP OVP Remote On/Off SCP UVLO	75 V	2	90 %	0.39 in	1 in	1 in	ITE (Commercial)	6-SIP Module	90 °C	-40 °C	677 mA	Isolated Module	Active Low Enable	-15 V
Recom Power RP20-123.3SA/N-HC	1.6 kV	Through Hole	3.3 V	9 V	20 W	OCP OVP Remote On/Off SCP UVLO	18 V	1	86 %	0.39 in	1 in	1 in	ITE (Commercial)	6-SIP Module	90 °C	-40 °C	4.5 A	Isolated Module	Active Low Enable
Recom Power RP20-4815DA/P-HC	1.6 kV	Through Hole	15 V	36 V	20 W	OCP OVP Remote On/Off SCP UVLO	75 V	2	90 %	0.39 in	1 in	1 in	ITE (Commercial)	6-SIP Module	90 °C	-40 °C	677 mA	Isolated Module	Active High Enable	-15 V
Recom Power RP20-1215DA-HC	1.6 kV	Through Hole	15 V	9 V	20 W	OCP OVP SCP UVLO	18 V	2	90 %	0.39 in	1 in	1 in	ITE (Commercial)		90 °C	-40 °C	677 mA	Isolated Module		-15 V	4 Leads	6-SIP Module
Recom Power RP20-2405SA	1.6 kV	Through Hole	5 V	18 V	20 W	OCP OVP SCP UVLO	36 V	1	90 %	0.39 in	1 in	1 in	ITE (Commercial)		90 °C	-40 °C	4 A	Isolated Module			4 Leads	6-SIP Module
Recom Power RP20-1212DA/P-HC	1.6 kV	Through Hole	12 V	9 V	20 W	OCP OVP Remote On/Off SCP UVLO	18 V	2	89 %	0.39 in	1 in	1 in	ITE (Commercial)	6-SIP Module	90 °C	-40 °C	833 mA	Isolated Module	Active High Enable	-12 V
Recom Power RP20-2415SA/P	1.6 kV	Through Hole	15 V	18 V	20 W	OCP OVP Remote On/Off SCP UVLO	36 V	1	91 %	0.39 in	1 in	1 in	ITE (Commercial)	6-SIP Module	90 °C	-40 °C	1.33 A	Isolated Module	Active High Enable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RP20-2415SA-HC | Datasheet
