ANTENNA WIFI6/6E FPC SH 25X20 100 UFL
ANT-W63-FPC-SH100UF
ActiveTE Connectivity AMP Connectors
ANTENNA WIFI6/6E FPC SH 25X20 100 UFL
Description
General part information
ANT-W63-FPC-SH100UF

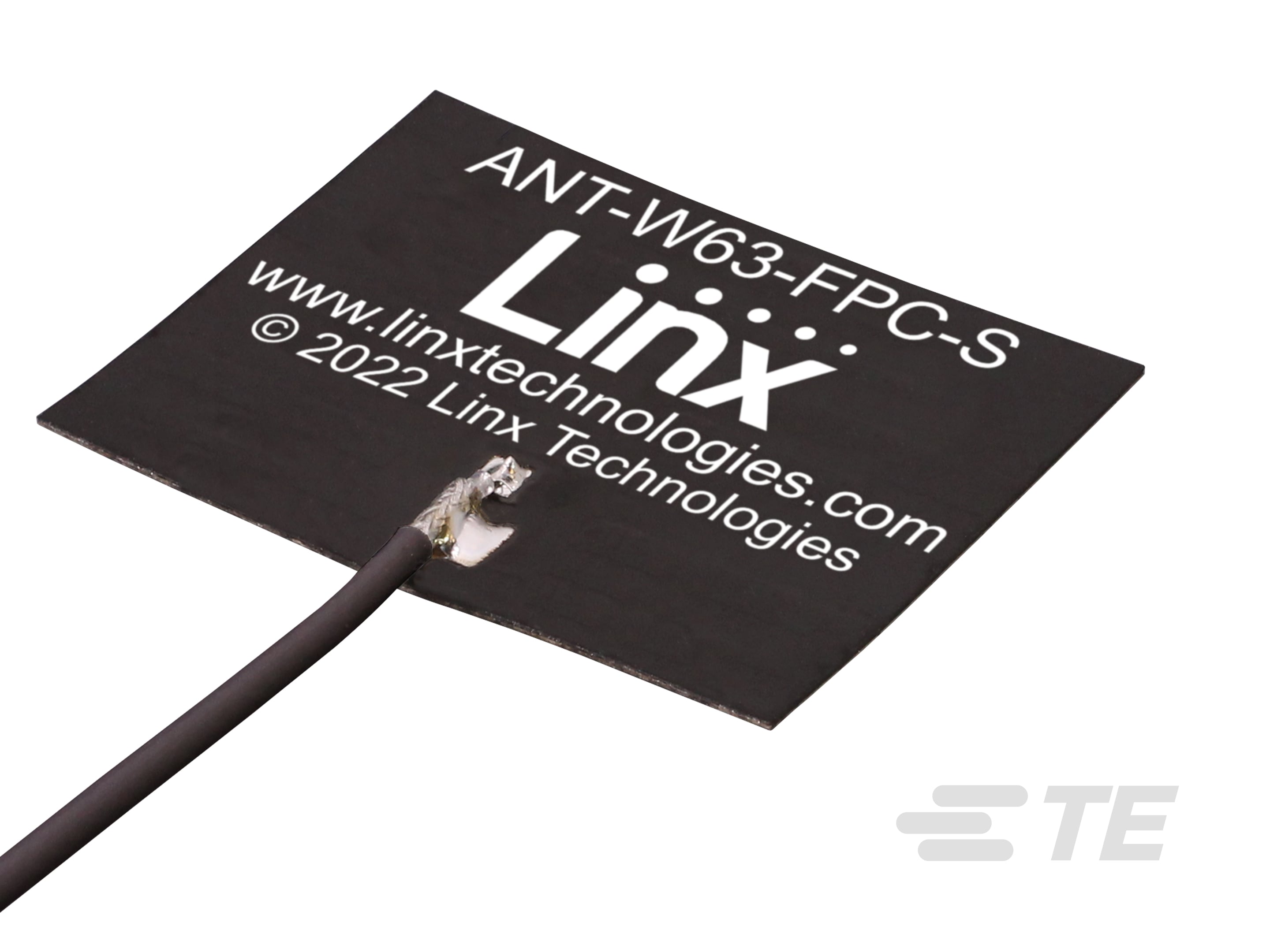

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive Mount, MHF1, Omnidirectional, Single Port, > 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-W63-FPC-SH100UF |
|---|---|
| Antenna Type | Flat Patch |
| Applications | Zigbee™, Bluetooth, Wi-Fi, 802.11b/g/-c/ax, ISM, U-NII |
| Features | Cable, 100mm |
| Frequency (Center/Band) | 6.5375GHz, 5.5225GHz, 2.45GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.895 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Frequency Range (Band 3) Maximum | 7.125 GHz |
| Frequency Range (Band 3) Minimum | 5.95 GHz |
| Gain | 8.5 dBi, 4.7 dBi, 7.8 dBi |
| Height (Max) | 0.004 in |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| Power - Max | 2 VA |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Termination Type | U.FL, I-PEX MHF1 |
| VSWR | 1.8, 1.5, 1.6 |
