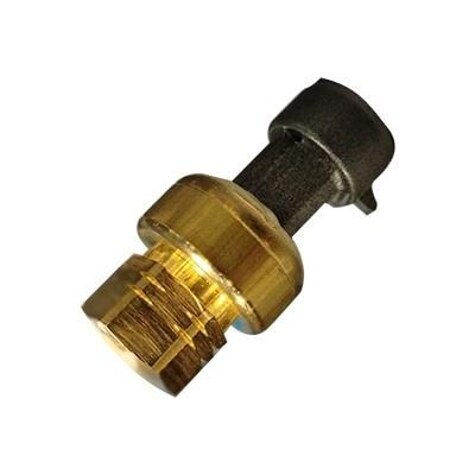

Specification	87CP725M35AN

Accuracy	0.8 %
Applications	Industrial Automation, Medical Ventilation
Maximum Pressure	761.45 PSI
Operating Pressure (Max)	507.63 PSI
Operating Pressure (Min)	14.5 PSI
Operating Temperature (Max)	135 °C
Operating Temperature (Min)	-40 °C
Output Current (Max)	20 mA
Output Current (Min)	4 mA
Output Type	Analog Current
Package / Case	Threaded, Cylinder
Pin Count	3 pins
Port Diameter	0.125 "
Port Feature	NPT
Port Gender	Male
Port Style	Threaded
Pressure Type	Absolute
Termination Style	Packard
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	6 V
