B1010SP0-EVB-2
ActiveCEL
B1010SP0-2X BLUETOOTH SMART MINI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B1010SP0-EVB-2
ActiveCEL
B1010SP0-2X BLUETOOTH SMART MINI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | B1010SP0-EVB-2 | B1010SP0 Series |
|---|---|---|
| Antenna Type | - | Integrated, Trace, Antenna Not Included |
| Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Current - Receiving | - | 39 mA |
| Current - Receiving | - | 24 mA |
| Current - Receiving | - | 17 mA |
| Current - Transmitting | - | 54 mA |
| Current - Transmitting | - | 54 mA |
| Current - Transmitting | - | 17 mA |
| For Use With/Related Products | B1010SP0 | B1010SP0 |
| Frequency | 2.4 GHz | 2.4 GHz |
| Memory Size | - | 1 MB |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -30 ░C |
| Operating Temperature | - | 85 °C |
| Package / Case | - | Module |
| Power - Output | - | 8 dBm |
| Protocol | - | Bluetooth v4.0 |
| RF Family/Standard | - | Bluetooth |
| Sensitivity | - | -94 dBm |
| Serial Interfaces | - | UART, I2C, SPI |
| Supplied Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Type | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) |
| Utilized IC / Part | B1010SP0 | EM357, B1010SP0 |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 1.8 V |
B1010SP0 Series
RF TXRX MOD BT TH SMD
| Part | Frequency | Package / Case | Utilized IC / Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Antenna Type | Power - Output | Current - Transmitting | Current - Receiving | Sensitivity | RF Family/Standard | Serial Interfaces | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Memory Size | Protocol | For Use With/Related Products | Supplied Contents | Contents | Type | Current - Transmitting [Max] | Current - Transmitting [Min] | Current - Receiving [Max] | Current - Receiving [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CEL B1010SP0-2-R | 2.4 GHz | Module | EM357 | 3.6 V | 1.8 V | Integrated, Trace | 8 dBm | 54 mA | 39 mA | -94 dBm | Bluetooth | I2C, SPI, UART | Surface Mount | -30 ░C | 85 °C | 1 MB | Bluetooth v4.0 | ||||||||
2.4 GHz | B1010SP0 | B1010SP0 | Board(s), Cable(s) | Board(s), Cable(s) | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) | ||||||||||||||||||||
2.4 GHz | B1010SP0 | Board(s), Cable(s) | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) | ||||||||||||||||||||||
2.4 GHz | Module | EM357 | 3.6 V | 1.8 V | Antenna Not Included | 8 dBm | -94 dBm | Bluetooth | I2C, SPI, UART | Surface Mount | -30 ░C | 85 °C | Bluetooth v4.0 | 54 mA | 17 mA | 24 mA | 17 mA | ||||||||
CEL B1010SP0-1-R | 2.4 GHz | Module | EM357 | 3.6 V | 1.8 V | Integrated, Trace | 8 dBm | -94 dBm | Bluetooth | I2C, SPI, UART | Surface Mount | -30 ░C | 85 °C | Bluetooth v4.0 | 54 mA | 17 mA | 24 mA | 17 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 123.88 | |
Description
General part information
B1010SP0 Series

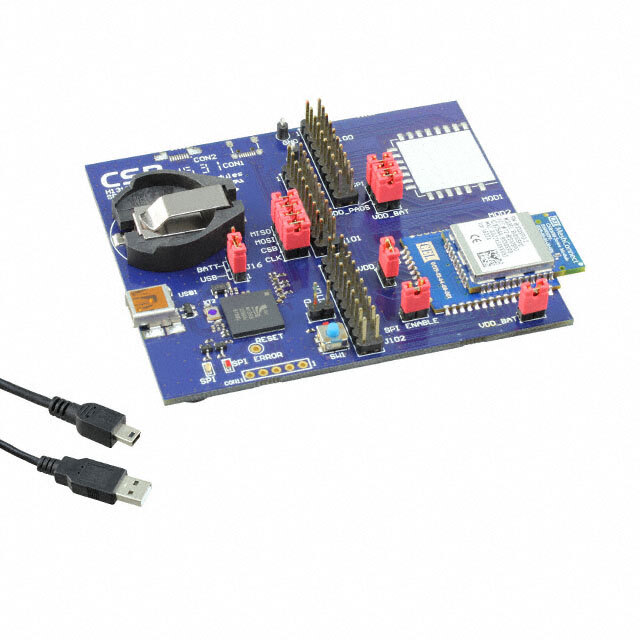

B1010SP0 MeshConnect™ Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) 2.4GHz Evaluation Board
Documents
Technical documentation and resources
