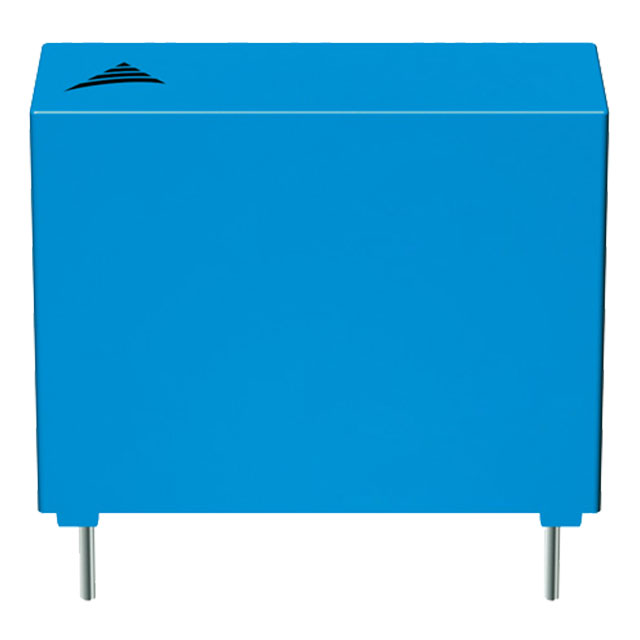

Specification	B32913A5104M

Applications	RFI Suppression, EMI
Capacitance	0.1 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	0.591 in
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	X1
Size / Dimension Length	1.043 in
Size / Dimension Width	0.236 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	530 V
Voltage Rating - DC	1 kV
