BB-ESWGP512-4SFP-T
ObsoleteAdvantech Corporation

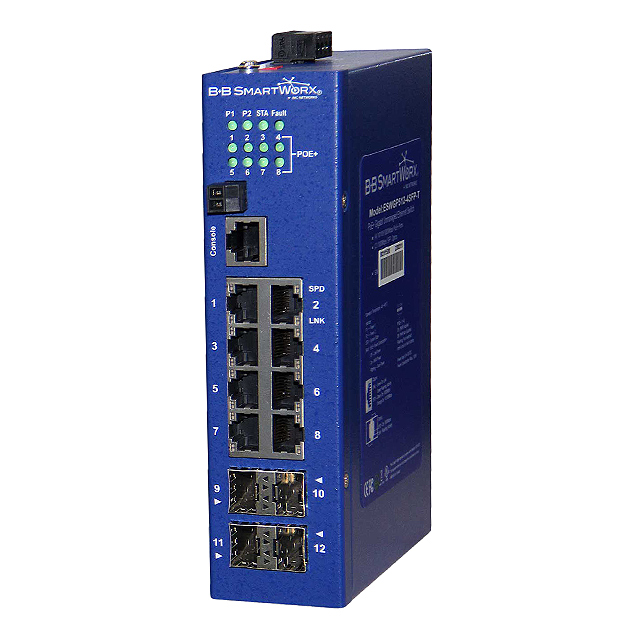

NETWORK SWITCH-MANAGED 12 PORT
BB-ESWGP512-4SFP-T
ObsoleteAdvantech Corporation
NETWORK SWITCH-MANAGED 12 PORT
Description
General part information
BB-ESWGP512-4SFP-T
Network Switch - Managed 12 Ports IP30
Technical Specifications
Parameters and characteristics for this part
| Specification | BB-ESWGP512-4SFP-T |
|---|---|
| Configuration | Fixed, SFP |
| Connector Type | RJ45 |
| Copper Ports | 8 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Ingress Protection | IP30 |
| Mounting Type | Panel Mount, DIN Rail, DIN Rail or Panel Mount |
| Number of Ports | 12 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| PoE Ports | 8 |
| SFP/XFP Ports (Count) | 4 |
| SFP/XFP Type | Gigabit, SFP |
| Type | Switch - Managed |
| Voltage - Input (DC) Maximum | 57 V |
| Voltage - Input (DC) Minimum | 44 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
