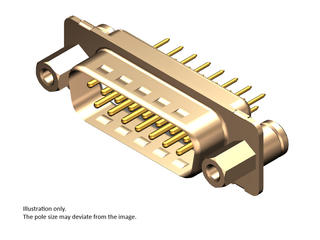

FCT STANDARD-DENSITY D-SUB CONNECTOR, MALE, STRAIGHT, PCB THROUGH HOLE, 10.30MM TAIL LENGTH, GOLD PLATED CONTACTS, UNPLATED BRASS SHELL, NON-MAGNETIC, 500 MATING CYCLES, 6.30MM #4-40 FRONT SPACER, 5.50MM M3 REAR SPACER, 9 CIRCUITS, WHITE INSULATOR

Find alt

Alpha

1731140502

Active

Molex

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

173114 Series

Technical Specifications

Parameters and characteristics for this part

Specification	1731140502

Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	51.2 µin
Contact Type	Signal
Current Rating	7.5 A
Features	Grounding Indents
Flange Feature	Board Side (4-40), Mating Side (4-40)
Ingress Protection	IP20
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Primary Material	Metal
Shell Material, Finish	Brass
Shell Size	1
Termination	Solder

173114 Series

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Contact Material	Color	Features	Number of Rows	Connector Type	Contact Type	Current Rating	Primary Material	Finish	Shell Material	Mounting Type	Shell Size, Connector Layout	Connector Style	Material Flammability Rating	Termination	Number of Positions	Flange Feature	Number of Positions	Hardware	Material	Plating	Accessory Type	Shielding	Cable Type	Cable Exit Angle	Number of Positions (Total)	Number of Positions (Normal)	Number of Positions (Power)	Housing Color	Convert From (Adapter End) Pin Count	Convert From (Adapter End) Pin Gender	Convert From (Adapter End) Type	Convert To (Adapter End) Pin Count	Convert To (Adapter End)
Molex 1731141002	-55 °C	130 °C	Glass Filled Polyester	Copper Alloy	Black	Board Lock	2	Female Sockets Receptacle	Signal	5 A	Metal	Tin-Nickel Plated	Steel	Right Angle Through Hole	2 (DA A)	D-Sub - Stacked	UL94 V-0	Solder	15	Housing Shell (M3)
Molex 1731140858
Molex 1731140274	-55 °C	130 °C	Glass Filled Polyester	Copper Alloy	Black	Board Lock	2	Female Socket Male Pins Plug Receptacle	Signal	5 A	Metal	Tin-Nickel Plated	Steel	Right Angle Through Hole	1 (DE E)	D-Sub - Stacked	UL94 V-0	Solder	9	Board Side (4-40)	9
Molex 1731140386					Silver	Dust Tight/Waterproof (IP67)					Plastic								9			Assembly Hardware Cable Clamp Strain Relief	Acrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Nickel	One Piece Backshell	Shielded	Round	180 °
Molex 1731140431
Molex 1731140993					Silver	Mating Screws					Metal											Assembly Hardware Cable Clamp Strain Relief	Zinc Die Cast	Nickel	Two Piece Backshell	Shielded	Round	180 °	7	5	2
Molex 1731140230
Molex 1731140078							2							Free Hanging (In-Line) Right Angle		Connector Saver										Shielded						White	15 pins	Female	D-Sub	15 pins	D-Sub Pin Male
Molex 1731140430
Molex 1731140308
