1713 SL001

Active

ALPHA WIRE

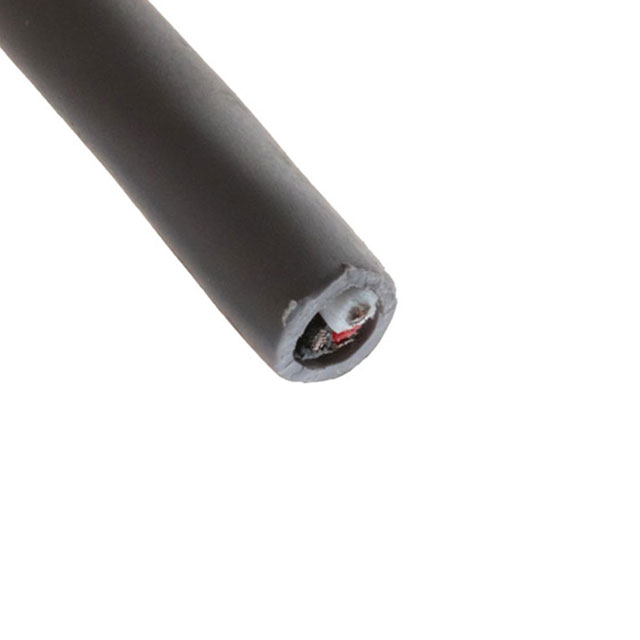

CABLE 3COND 20AWG SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 20AWG SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1713 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	0.248 in
Jacket (Insulation) Diameter [diameter]	6.3 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	600 V
Wire Gauge	20 AWG

CABLE 3COND 20AWG SHLD 1000'

Part	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Conductor Strand	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Shield Material	Conductor Insulation	Wire Gauge	Cable Type	Conductor Material	Jacket Color	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Length	Length
ALPHA WIRE 1713 SL001	3	0.889 mm	0.035 in	85 %	26, 34 AWG	Braid	0.248 in	6.3 mm	Poly-Vinyl Chloride (PVC)	Copper, Tinned	Polyethylene (PE)	20 AWG	Multi-Conductor	Copper, Tinned	Slate	Communication, Control	-20 C	60 °C	600 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 3127.78

General part information

3 Conductor Multi-Conductor Cable Slate 20 AWG Braid 1000.0' (304.8m)
