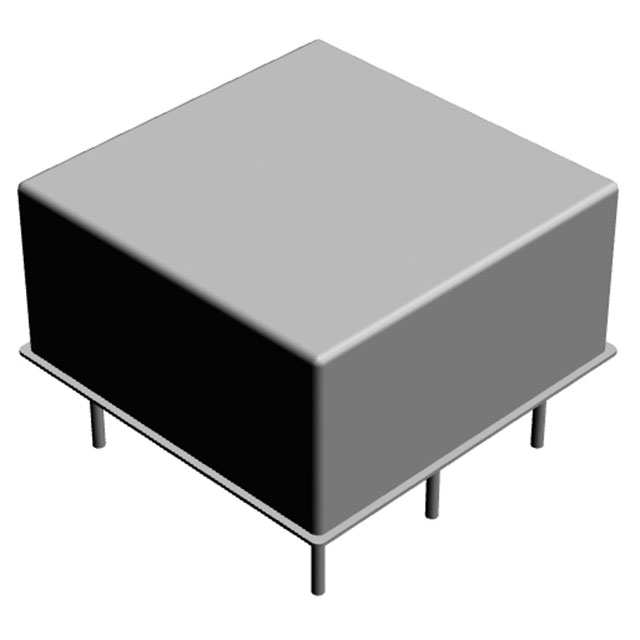

AOCJY7TQ-V-100.000MHZ-5
ActiveAbracon LLC
XTAL OSC VCOCXO 100.0000MHZ SNWV
AOCJY7TQ-V-100.000MHZ-5
ActiveAbracon LLC
XTAL OSC VCOCXO 100.0000MHZ SNWV
Description
General part information
AOCJY7TQ-V-100.000MHZ-5
100 MHz VCOCXO Sine Wave Oscillator 12V 6-DIP Module, 5 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | AOCJY7TQ-V-100.000MHZ-5 |
|---|---|
| Base Resonator | Crystal |
| Frequency | 100 MHz |
| Frequency Stability | 50 ppb |
| Height - Seated (Max) | 12.7 mm |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Sine Wave |
| Package Leads | 5 Leads |
| Package Name | 6-DIP Module |
| Size / Dimension Length | 1.004 in |
| Size / Dimension Width | 1.004 in |
| Type | VCOCXO |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
