Description
General part information

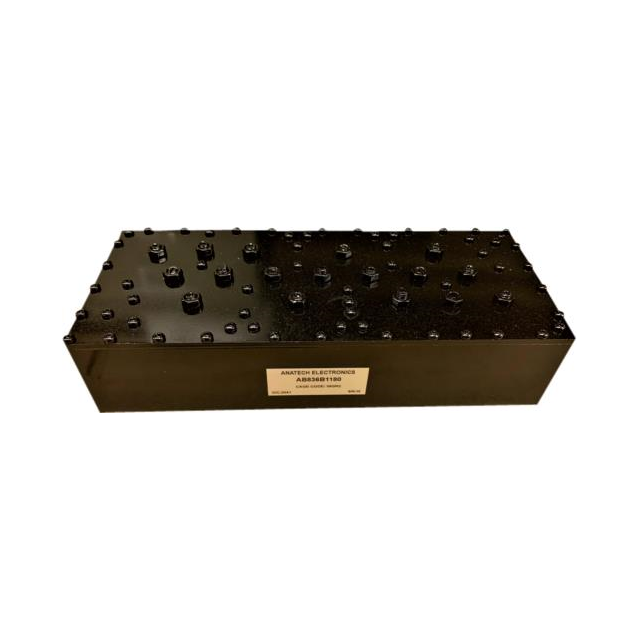

AB836B1180
836.5MHz Center Frequency Band Pass RF Filter (Radio Frequency) 25MHz Bandwidth 2dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | AB836B1180 |
|---|---|
| Bandwidth | 25 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 836.5 MHz |
| Height (Max) | 2.126 in |
| Insertion Loss | 2 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Length | 8.268 in |
| Size / Dimension Width | 3.453 in |
