E903
ActiveSWITCHCRAFT/CONXALL
PENDANT STATION, 500 MA, SPDT
E903
ActiveSWITCHCRAFT/CONXALL
PENDANT STATION, 500 MA, SPDT
Description
General part information
E903

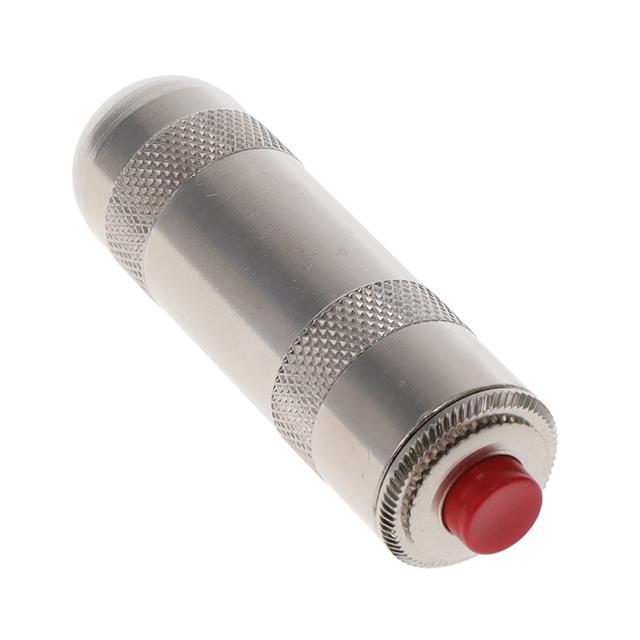

The E903 is a single-pole double-throw (SPDT) Momentary Cord Switch with red thermoplastic pushbutton actuator and silver-plated copper alloy solder terminals. This pendant switch comes with nickel-plated copper alloy handle, phenolic insulator, stainless steel spring, nickel-plated copper alloy housing and copper alloy bushing.
Technical Specifications
Parameters and characteristics for this part
| Specification | E903 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Red |
| Current Rating | 250 mA |
| Mounting Type | Free Hanging |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - DC | 28 V |
