2306498-2
ActiveTE Connectivity AMP Connectors

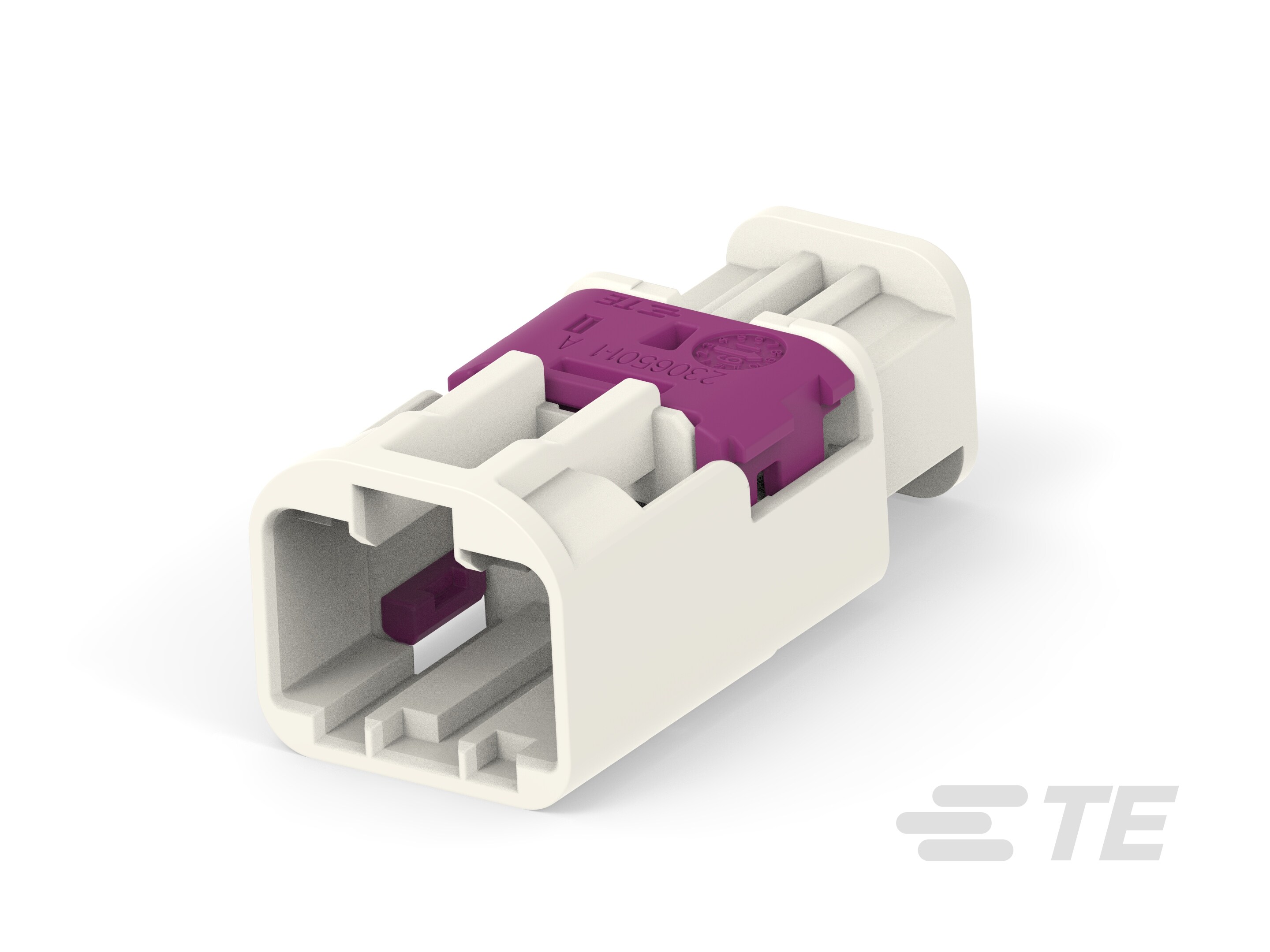

2 P, MATE-AX,PIN HSG, COD B
2306498-2
ActiveTE Connectivity AMP Connectors
2 P, MATE-AX,PIN HSG, COD B
Description
General part information
2306498-2
Cable-to-Cable, 180° Cable Exit, 2 Position, B Code, Housing for Male Terminals, 4 mm [.157 in] Centerline, Crimp, MATE-AX, Data Connectivity Housings
Technical Specifications
Parameters and characteristics for this part
| Specification | 2306498-2 |
|---|---|
| Color | White |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.157 in |
