31772
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 10-12AWG #1/4
31772
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 10-12AWG #1/4
Description
General part information
31772

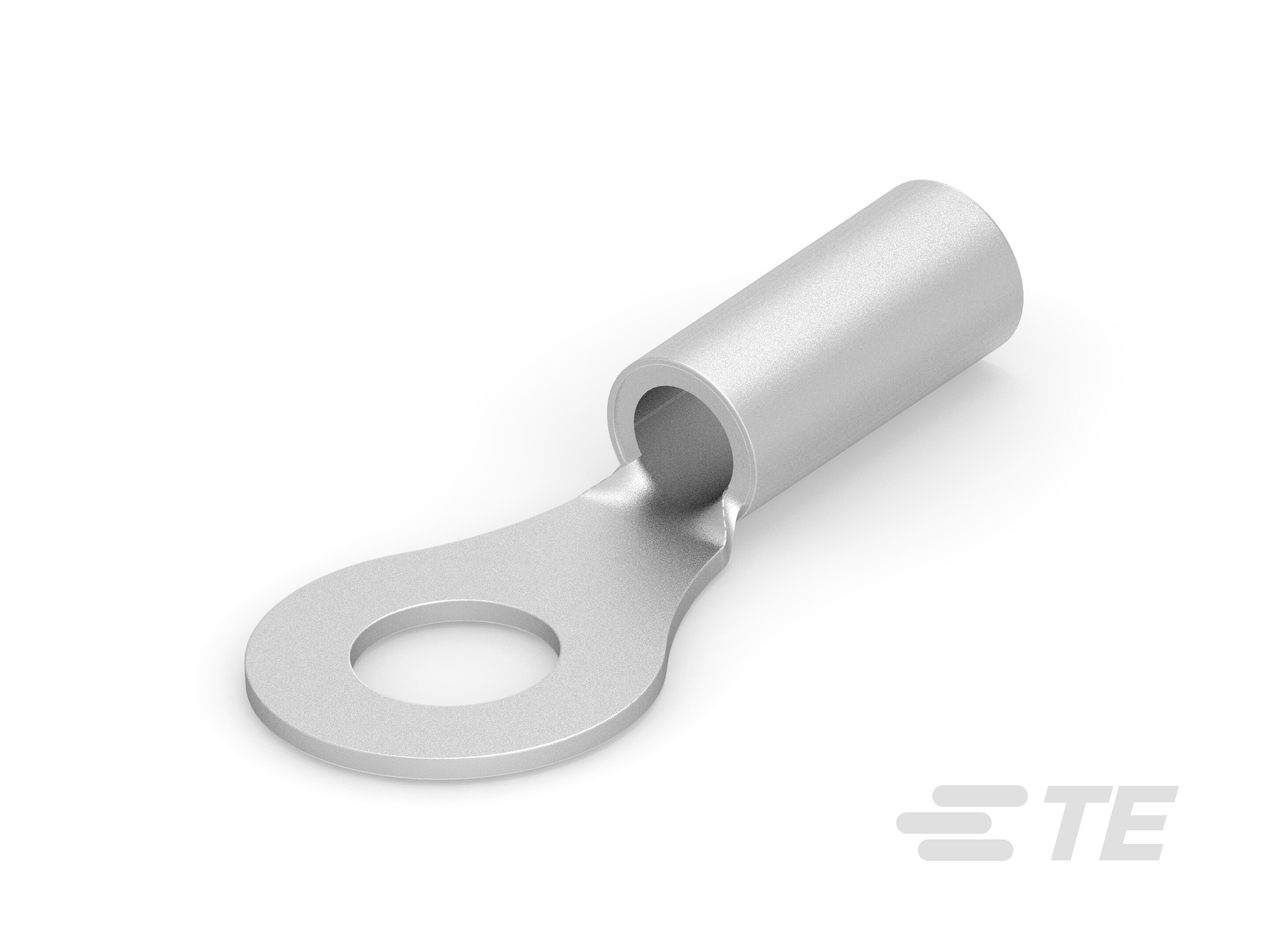

Closed Ring Tongue Terminal, 12 – 10 AWG, M6 Stud, 6.35 mm [.25 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 31772 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Non-Insulated |
| Length - Overall | 1.27 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.25 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.04 in |
| Width - Outer Edges | 0.531 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
