KRP-C-6000SP
ActiveEaton - Electronics Division
FUSE CARTRIDGE 6KA 600VAC/300VDC
KRP-C-6000SP
ActiveEaton - Electronics Division
FUSE CARTRIDGE 6KA 600VAC/300VDC
Description
General part information
KRP-C-6000SP

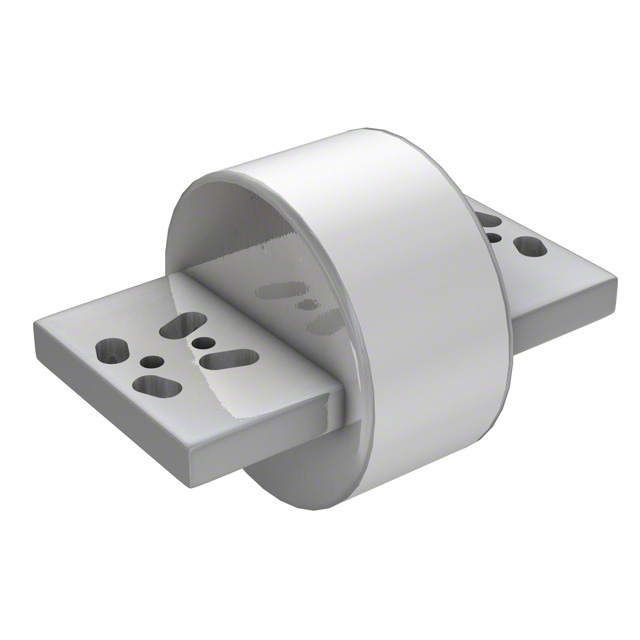

6kA 600 VAC 300 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | KRP-C-6000SP |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE, UL, CSA |
| Breaking Capacity (AC) | 300 kA |
| Breaking Capacity (DC) | 100 kA |
| Class | L |
| Current Rating | 6 kA |
| Fuse Type | Cartridge |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 7.13 in |
| Size / Dimension Length | 95.25 mm |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 300 V |
