Specification	1SNG606003R0000

Color	Silver
Ingress Protection Description	Waterproof, Water Resistant, Dust Tight
Ingress Protection IP Rating	IP68, IP66
Material	Nickel Plated, Brass
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Outside Cable Diameter (Max)	0.472 in
Outside Cable Diameter (Min)	0.236 in
Panel Hole Size	0.945 in
Thread Diameter	20 mm
Thread Length	0.236 in
Thread Pitch	1.5 mm

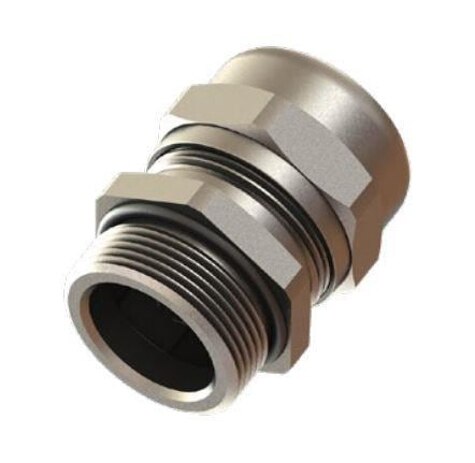

Type	Cable Gland
