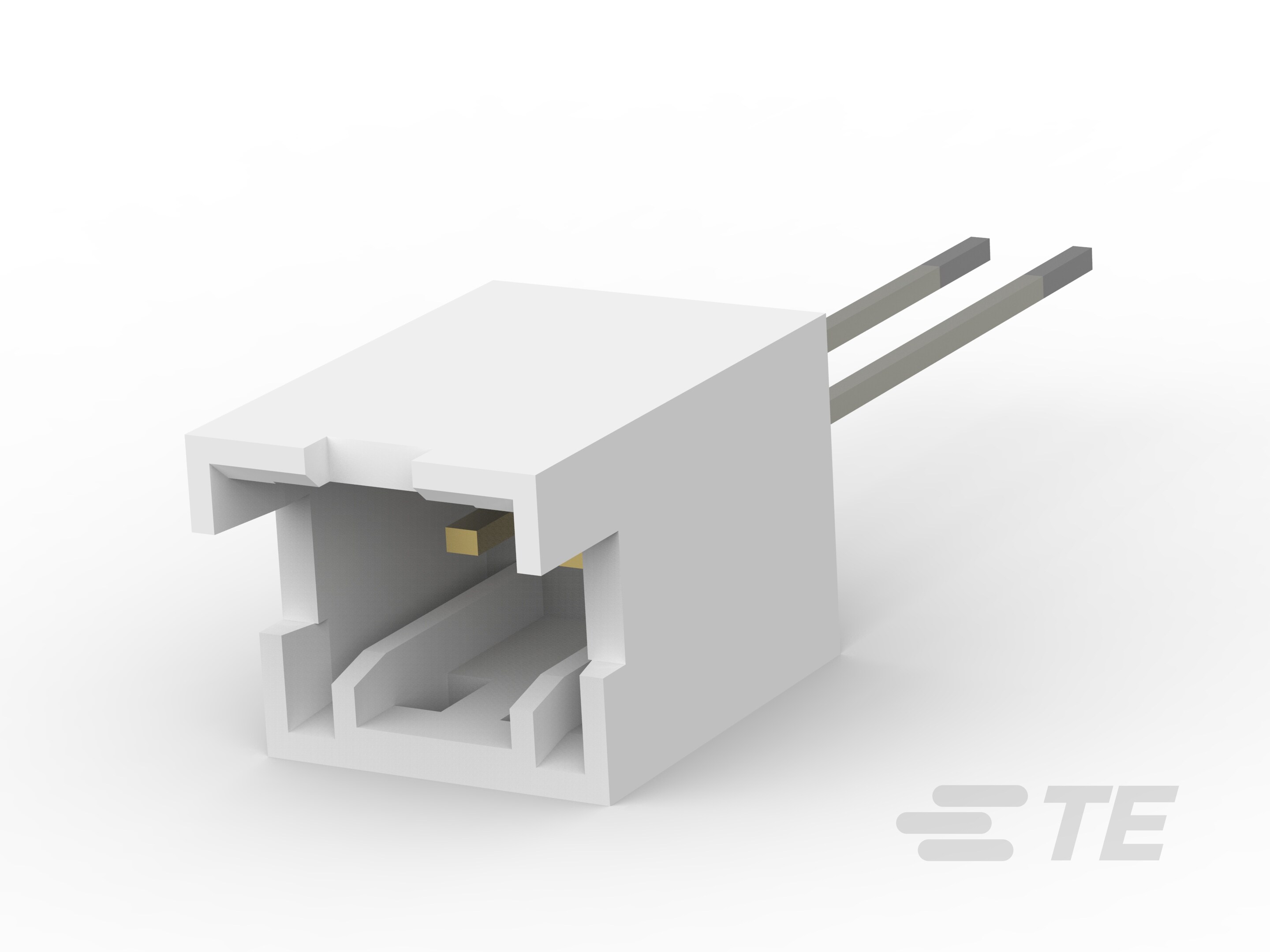

Specification	5-1747072-2

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Latch Holder
Insulation Color	Natural
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	50 V

GRACE INERTIA 2.5 Series

...

Part	Insulation Color	Insulation Material	Termination	Fastening Type	Number of Positions Loaded	Voltage Rating	Voltage Rating (Type)	Pitch - Mating	Shrouding	Number of Rows	Material Flammability Rating	Contact Length - Post	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Insulation Height	Connector Type	Contact Shape	Contact Finish - Mating	Contact Material	Contact Finish - Post	Contact Type	Style
TE Connectivity AMP Connectors 1747067-3	Natural	Glass Filled Nylon 6/6 Polyamide (PA66)	Kinked Pin Solder	Detent Lock	All	50 V	DC	0.098 in	Shrouded - 4 Wall	1	UL94 V-0	0.118 in	3	-40 °C	105 °C	Through Hole	0.445 in	Header	Rectangular	Gold	Brass	Tin	Tab	Board Cable/Wire
