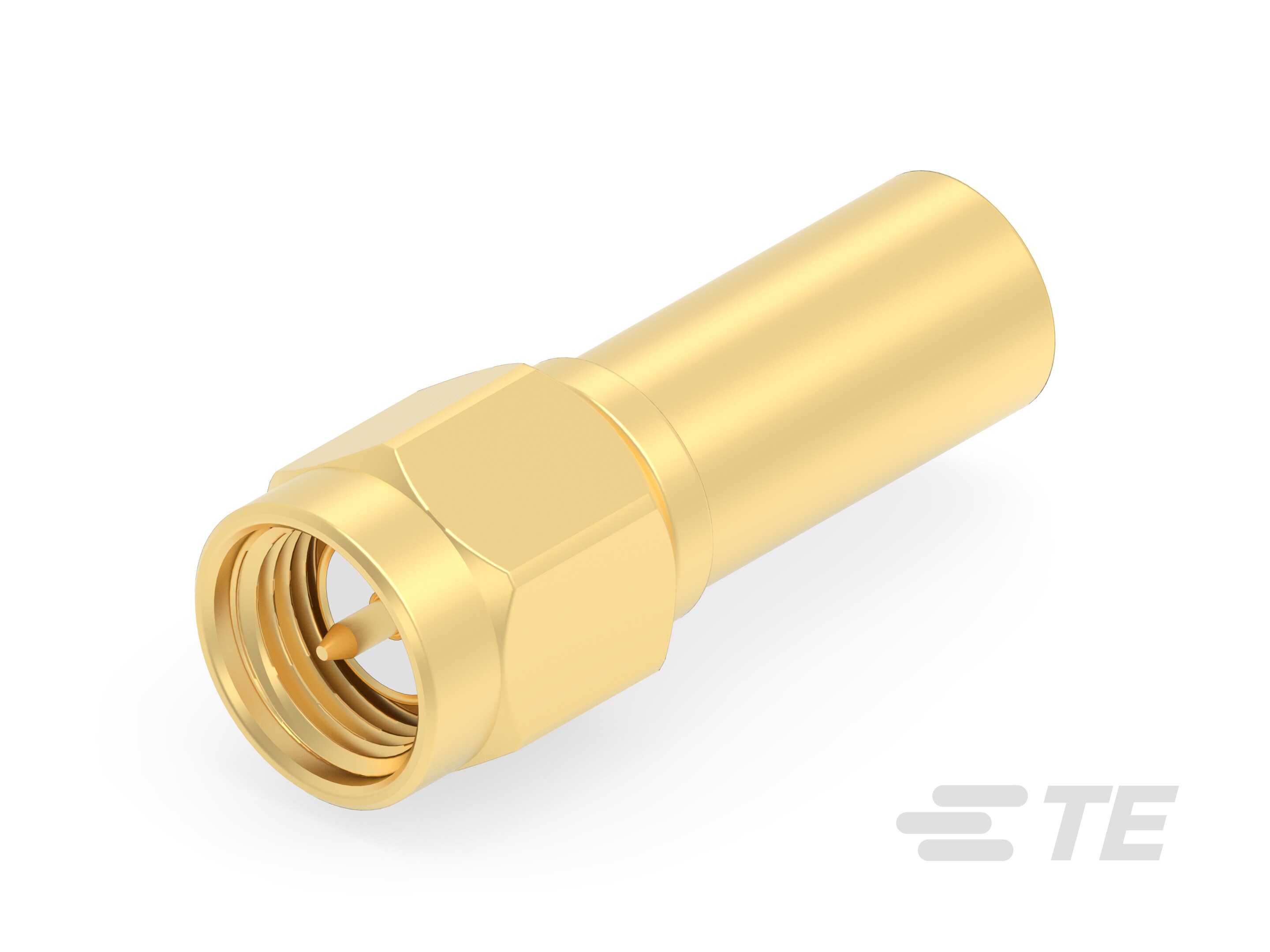

SMA PLUG,6GHZ,STRAIGHT,RG58 CABLE-2081364-1

2081364-1

Active
TE Connectivity AMP Connectors

SMA PLUG,6GHZ,STRAIGHT,RG58 CABLE

Find alt
SMA PLUG,6GHZ,STRAIGHT,RG58 CABLE-2081364-1

2081364-1

Active
TE Connectivity AMP Connectors

SMA PLUG,6GHZ,STRAIGHT,RG58 CABLE

Find alt

Description

General part information

2081364-1

SMA Connector, Plug, 50 ohm, Screw, 0 – 6 GHz, Cable-to-Cable, 1 Position, Wire & Cable, Cable Mount (Free-Hanging), -55 – 125 °C [-67 – 257 °F]

Technical Specifications

Parameters and characteristics for this part

Specification2081364-1
Cable GroupRG-58
Center Contact MaterialBrass
Connector StyleSMA
Connector TypeMale Pin, Plug
Contact TerminationSolder
Fastening TypeThreaded
Frequency - Max6000 MHz
Housing ColorGold
Impedance50 Ohm
Mounting TypeFree Hanging (In-Line)
Number of Ports1
Shield TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
