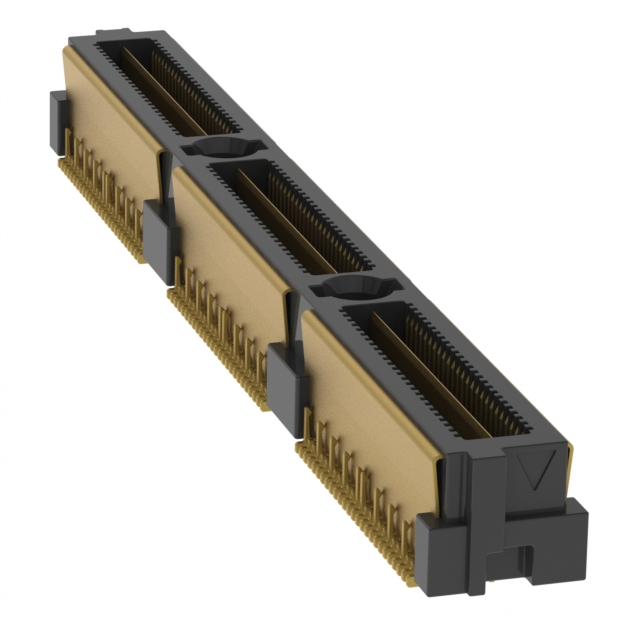

CONN DIFF ARRAY PLG 96P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

QMSS-048-06.75-L-D-DP-K

Active

Samtec Inc.

CONN DIFF ARRAY PLG 96P SMD GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QMSS-048-06.75-L-D-DP-K

Connector Type	Differential Pair Array, Male
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Shielded, Pick and Place, Board Guide, Ground Bus (Plane)
Height Above Board	0.265 in
Height Above Board	6.73 mm
Mated Stacking Heights	11 mm
Mounting Type	Surface Mount
Number of Positions	96
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QMSS-048 Series

Part	Mated Stacking Heights	Connector Type	Height Above Board	Height Above Board	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features
Samtec Inc. QMSS-048-06.75-L-D-DP-PC4	11 mm	Differential Pair Array Male	0.265 in	6.73 mm	2	0.64 mm	0.025 in	Surface Mount	Gold	10 Áin	0.25 Ám	96	Board Guide Ground Bus (Plane) Power Pins (4) Shielded
Samtec Inc. QMSS-048-06.75-L-D-DP	11 mm	Differential Pair Array Male	0.265 in	6.73 mm	2	0.64 mm	0.025 in	Surface Mount	Gold	10 Áin	0.25 Ám	96	Board Guide Ground Bus (Plane) Shielded
Samtec Inc. QMSS-048-01-H-D-DP-EM2	11 mm	Differential Pair Array Male	0.265 in	6.73 mm	2	0.64 mm	0.025 in	Surface Mount	Gold	30 Áin	0.76 Ám	96	Board Guide Ground Bus (Plane) Shielded
Samtec Inc. QMSS-048-06.75-L-D-DP-K	11 mm	Differential Pair Array Male	0.265 in	6.73 mm	2	0.64 mm	0.025 in	Surface Mount	Gold	10 Áin	0.25 Ám	96	Board Guide Ground Bus (Plane) Pick and Place Shielded
Samtec Inc. QMSS-048-06.75-L-D-DP-A-K-TR	11 mm	Differential Pair Array Male	0.265 in	6.73 mm	2	0.64 mm	0.025 in	Surface Mount	Gold	10 Áin	0.25 Ám	96	Board Guide Ground Bus (Plane) Pick and Place Shielded
Samtec Inc. QMSS-048-06.75-L-D-DP-A-GP	11 mm	Differential Pair Array Male	0.265 in	6.73 mm	2	0.64 mm	0.025 in	Surface Mount	Gold	10 Áin	0.25 Ám	96	Board Guide Ground Bus (Plane) Shielded
Samtec Inc. QMSS-048-06.75-L-D-DP-A-K	11 mm	Differential Pair Array Male	0.265 in	6.73 mm	2	0.64 mm	0.025 in	Surface Mount	Gold	10 in	0.25 m	96	Board Guide Ground Bus (Plane) Pick and Place Shielded
Samtec Inc. QMSS-048-01-H-D-DP-EM2-PC8	11 mm	Differential Pair Array Male	0.265 in	6.73 mm	2	0.64 mm	0.025 in	Surface Mount	Gold	30 Áin	0.76 Ám	96	Board Guide Ground Bus (Plane) Power Pins (8) Shielded
Samtec Inc. QMSS-048-06.75-H-D-DP-PC4	11 mm	Differential Pair Array Male	0.265 in	6.73 mm	2	0.64 mm	0.025 in	Surface Mount	Gold	30 Áin	0.76 Ám	96	Board Guide Ground Bus (Plane) Power Pins (4) Shielded
