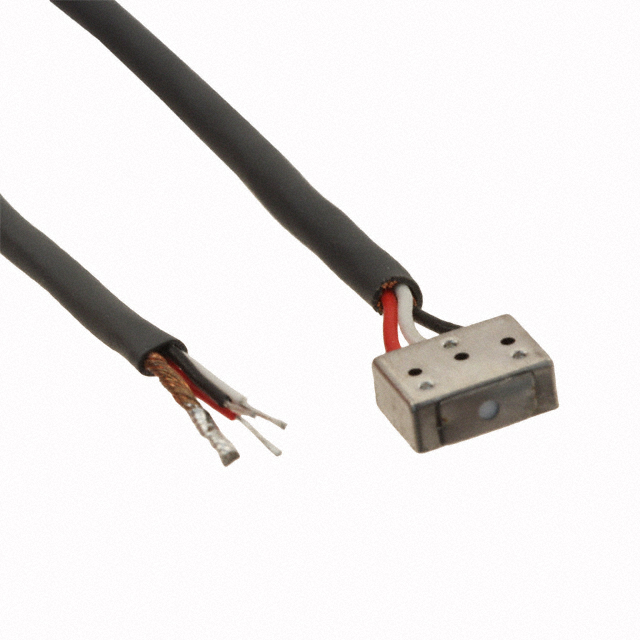

WP-23502-P07
ObsoleteKnowles Syfer
MIC COND ANALOG OMNI -52DB
WP-23502-P07
ObsoleteKnowles Syfer
MIC COND ANALOG OMNI -52DB
Description
General part information
WP-23502-P07
100 Hz ~ 6 kHz Analog Microphone Electret Condenser 1.3 V ~ 10 V Omnidirectional (-52dB ±3dB @ 74dB SPL) Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | WP-23502-P07 |
|---|---|
| Current - Supply | 50 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 6 kHz |
| Frequency Range (Min) | 100 Hz |
| Height (Max) | 0.089 in |
| Impedance | 4.4 kOhms |
| Output Type | Analog |
| Port Location | Top |
| Ratings | Waterproof |
| Sensitivity (Nominal) | -52 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Rectangular |
| Size / Dimension Length | 0.219 in |
| Size / Dimension Width | 0.157 in |
| Termination | Wire Leads |
| Type | Electret Condenser |
| Voltage - Rated | 1.3 VDC |
| Voltage Range (Max) | 10 V |
| Voltage Range (Min) | 1.3 V |
