30350-5002HB

Active

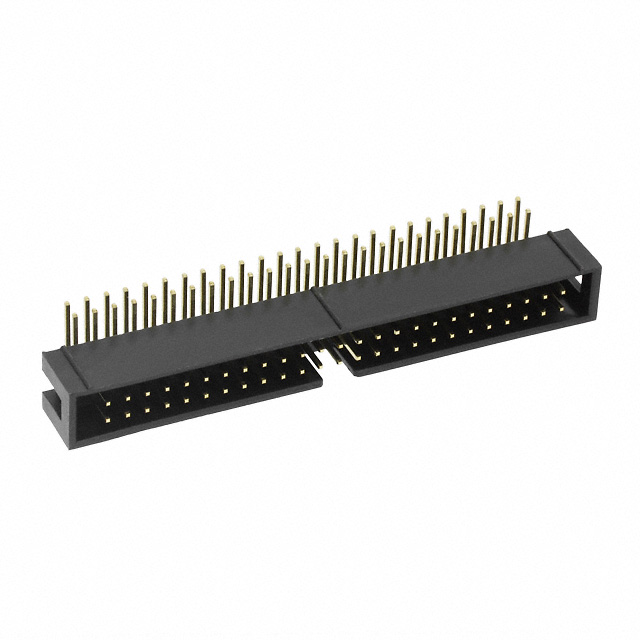

CONN HEADER R/A 50POS 2.54MM

Search across all available documentation for this part.

Active

CONN HEADER R/A 50POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	30350-5002HB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	8.4 mm
Insulation Height	0.331 in
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

CONN HEADER R/A 50POS 2.54MM

Part	Contact Length - Post [x]	Contact Length - Post	Insulation Color	Material Flammability Rating	Features	Fastening Type	Contact Finish Thickness - Mating	Mounting Type	Connector Type	Contact Material	Contact Finish - Post	Contact Finish - Mating	Style	Contact Type	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Rows	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Number of Positions	Number of Positions Loaded
3M 30350-5002HB	0.11 in	2.79 mm	Black	UL94 V-0	Keying Slot	Push-Pull	Flash	Through Hole, Right Angle	Header	Brass	Gold	Gold	Board to Board, Cable	Male Pin	8.4 mm	0.331 in	105 ░C	-55 °C	Solder	2	Square	0.1 in	2.54 mm	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	Flash	6 mm	0.236 in	2.54 mm	0.1 in	Shrouded - 4 Wall	50	All
