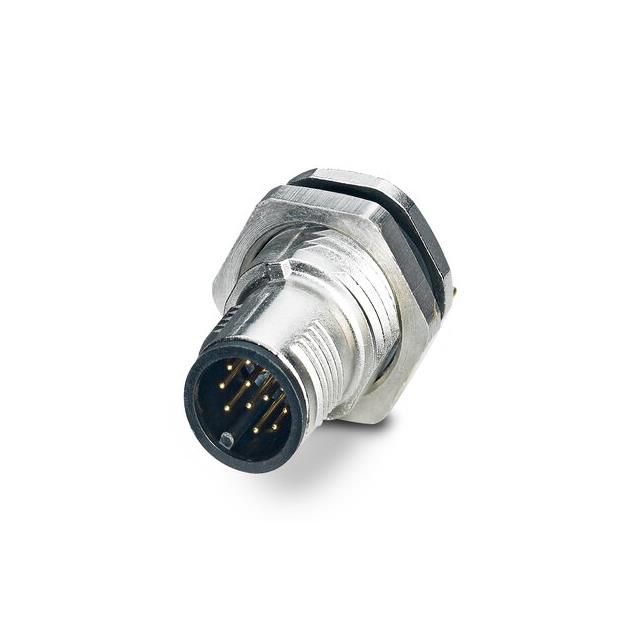

Specification	1441820

Color	Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating	1.5 A
Fastening Type	Push-Twist
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Polyamide, Nylon 6/6, PA66
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount, Through Hole
Number of Positions	12
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M12-12
Termination	Solder
Voltage Rating	30 V
