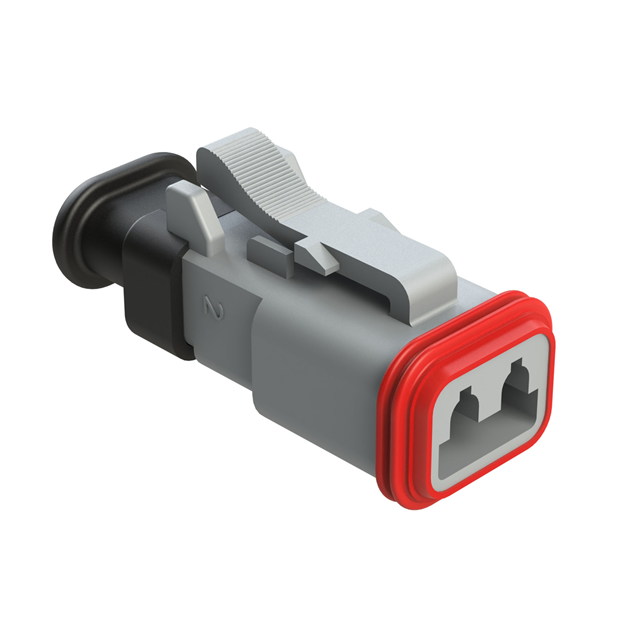

Specification	AT06-2S-SR01GRY

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Strain Relief, Sealed, IP69K, IP68, Cap (Cover)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

AT06-2S Series

Part	Note	Connector Type	Insulation Material	Number of Rows	Mounting Type	Features	Contact Termination	Fastening Type	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Color	Number of Positions	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Wire Type	Cable Termination
McGill Microwave Systems AT06-2S-BLU	Contacts Not Included	Plug	Thermoplastic	1	Free Hanging (In-Line)	Sealed	Crimp	Latch Lock	Female Socket	125 °C	-55 °C	Blue	2
McGill Microwave Systems AT06-2S-LED1224VR-OM		Plug	Polycarbonate (PC)	1	Free Hanging (In-Line)	IP67/IP69K LED Sealed	Crimp	Latch Lock	Female Socket	125 °C	-55 °C	Natural	2
McGill Microwave Systems AT06-2S-KIT01		Plug		1	Free Hanging (In-Line)	Wedge Lock		Latch Lock	Female Socket			Gray	2	18 AWG	16 AWG	Discrete	Crimp
McGill Microwave Systems AT06-2S-LED24K1	Contacts Not Included	Plug	Thermoplastic	1	Free Hanging (In-Line)	LED	Crimp	Latch Lock	Female Socket	125 °C	-55 °C	Black	2
McGill Microwave Systems AT06-2S-LED12V01-OMC		Plug	Polycarbonate (PC)	1	Free Hanging (In-Line)	IP68 IP69K LED Sealed	Crimp	Latch Lock	Female Socket	85 °C	-40 °C	Natural	2
McGill Microwave Systems AT06-2S-OMRDGRN		Plug	Glass Filled Nylon 6/6 Polyamide (PA66)	1	Free Hanging (In-Line)	Sealed	Crimp	Latch Lock	Female Socket	125 °C	-55 °C	Green	2
McGill Microwave Systems AT06-2S-OMRDBLU		Plug	Glass Filled Nylon 6/6 Polyamide (PA66)	1	Free Hanging (In-Line)	Sealed	Crimp	Latch Lock	Female Socket	125 °C	-55 °C	Blue	2
McGill Microwave Systems AT06-2S-MM03	Contacts Not Included		Thermoplastic							125 °C	-55 °C
McGill Microwave Systems AT06-2S-LED24VR1-OMC		Plug	Polycarbonate (PC)	1	Free Hanging (In-Line)	IP68 IP69K LED Reduced Wire Seals Sealed	Crimp	Latch Lock	Female Socket	85 °C	-40 °C	Natural	2
McGill Microwave Systems AT06-2S-LED24VR1-OM		Plug	Polycarbonate (PC)	1	Free Hanging (In-Line)	IP67/IP69K LED Sealed	Crimp	Latch Lock	Female Socket	85 °C	-40 °C	Natural	2
