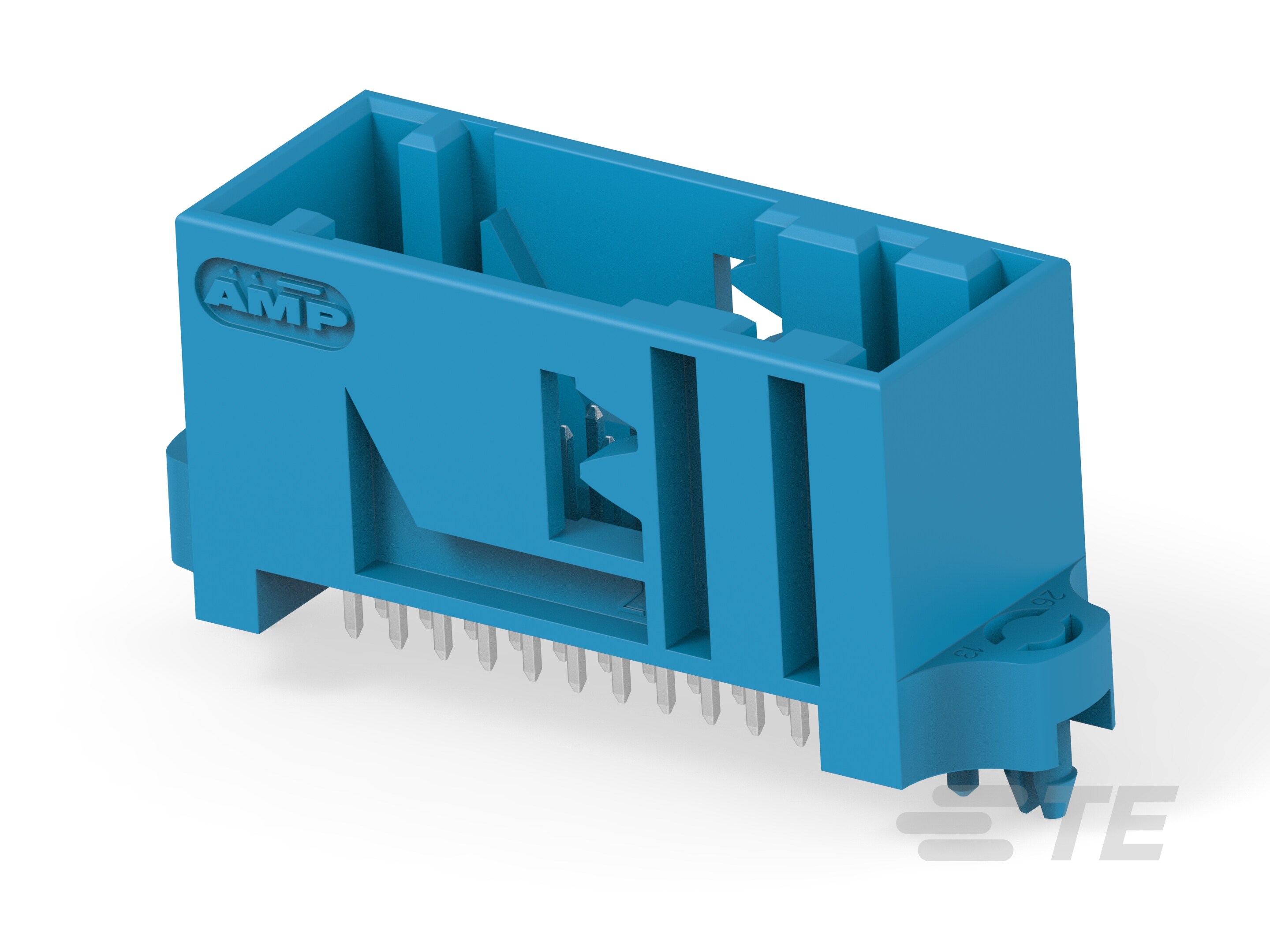

Specification	953472-2

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.264 in
Contact Length - Post	0.114 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Features	Board Guide, Board Lock, Mounting Flange
Insulation Color	Blue
Insulation Height	0.835 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 HB
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	12 V
