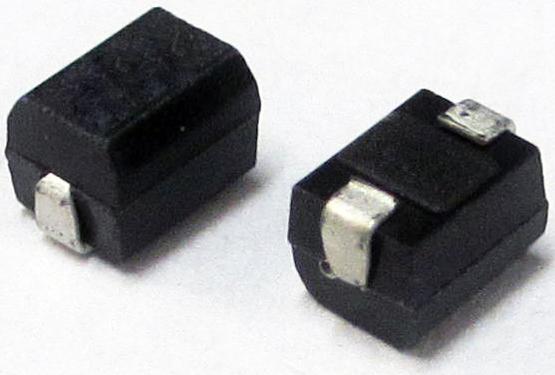

AISM-1210-1R0K-T
ActiveAbracon LLC
INDUCTOR RF MOLDED WIREWOUND 1UH 10% 7.96MHZ 30Q-FACTOR 0.4A 0.7OHM DCR 1210 T/R
AISM-1210-1R0K-T
ActiveAbracon LLC
INDUCTOR RF MOLDED WIREWOUND 1UH 10% 7.96MHZ 30Q-FACTOR 0.4A 0.7OHM DCR 1210 T/R
Description
General part information
AISM-1210-1R0K-T
1 µH Unshielded Molded Inductor 400 mA 700mOhm Max 1210 (3225 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | AISM-1210-1R0K-T |
|---|---|
| Current Rating | 400 mA |
| DC Resistance (DCR) (Max) | 700 mOhm |
| Frequency - Self Resonant | 120 MHz |
| Height - Seated (Max) | 0.094 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1210 (3225 Metric) |
| Package Name | 1210 |
| Q | 30 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Tolerance | 10 % |
| Type | Molded |
