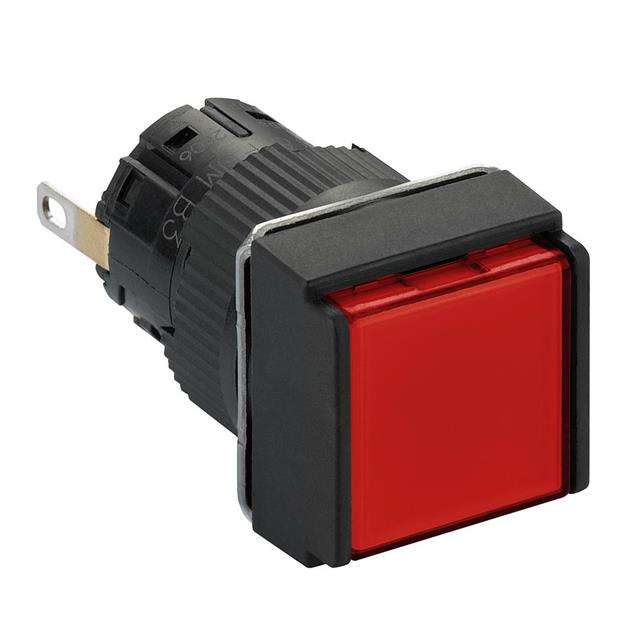

XB6ECV4JP
ObsoleteSCHNEIDER ELECTRIC
MONOLITHIC PILOT LIGHT, HARMONY
XB6ECV4JP
ObsoleteSCHNEIDER ELECTRIC
MONOLITHIC PILOT LIGHT, HARMONY
Description
General part information
XB6ECV4JP
LED Panel Indicator 12V 10mA Quick Connect - 0.110" (2.8mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | XB6ECV4JP |
|---|---|
| Current | 10 mA |
| Ingress Protection | IP65 |
| Lens Color | Red |
| Lens Style | Flat Top, Square |
| Panel Cutout Dimension | 0.63 " |
| Panel Cutout Shape | Round |
| Quick Connect Size (0.110") | 0.11 in |
| Ratings | DC |
| Termination Style | Quick Connect |
| Type | LED |
| Voltage | 12 VDC |
