2295393-1
ActiveTE Connectivity AMP Connectors

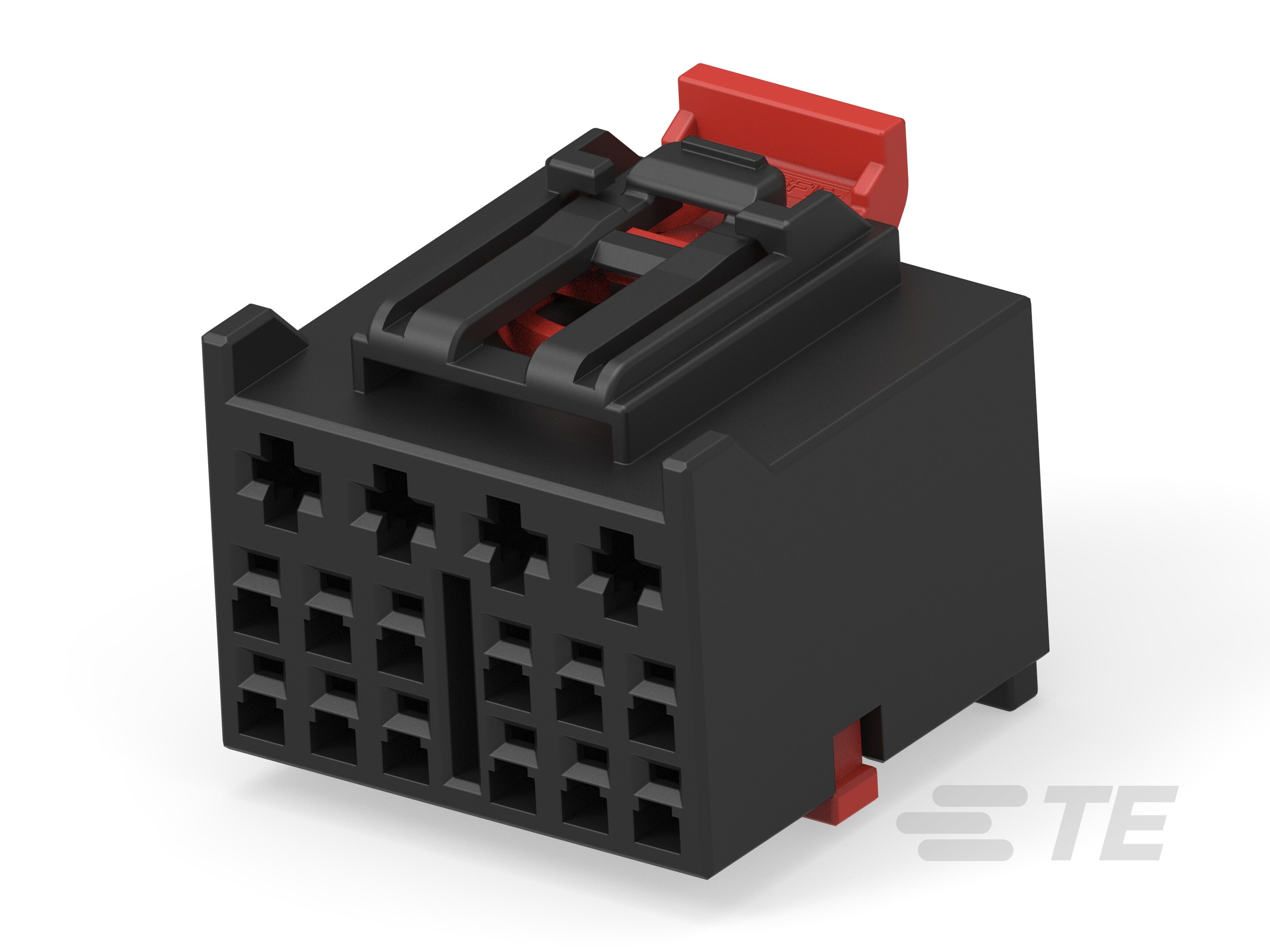

PLUG ASSY, 16WAY, HYBRID, UNSEALED, A
2295393-1
ActiveTE Connectivity AMP Connectors
PLUG ASSY, 16WAY, HYBRID, UNSEALED, A
Description
General part information
2295393-1
16 Position Housing, Housing for Female Terminals, Wire-to-Board, 3.5 mm / 5.5 mm [.13 in / .21 in] Centerline, Black, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 2295393-1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Connector Position Assurance (CPA), Terminal Position Assurance (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Row Spacing | 0.138 in |
