Description
General part information

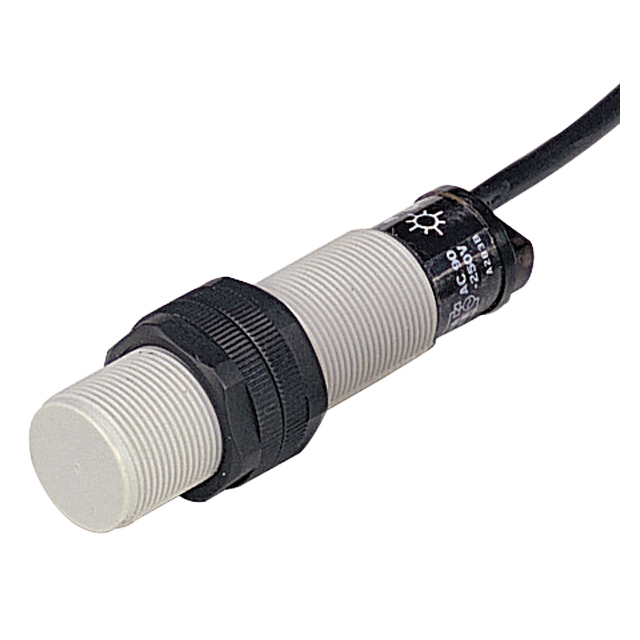

CR18-8DP
SENSOR PROX CAPACITIVE 8MM CYL
Technical Specifications
Parameters and characteristics for this part
| Specification | CR18-8DP |
|---|---|
| Indicator | LED |
| Ingress Protection | IP66 |
| Material - Body | Polyamide (PA) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Response Frequency | 50 Hz |
| Sensing Distance | 0.315 " |
| Sensor Type | Capacitive |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
