179631-1
ActiveTE Connectivity AMP Connectors

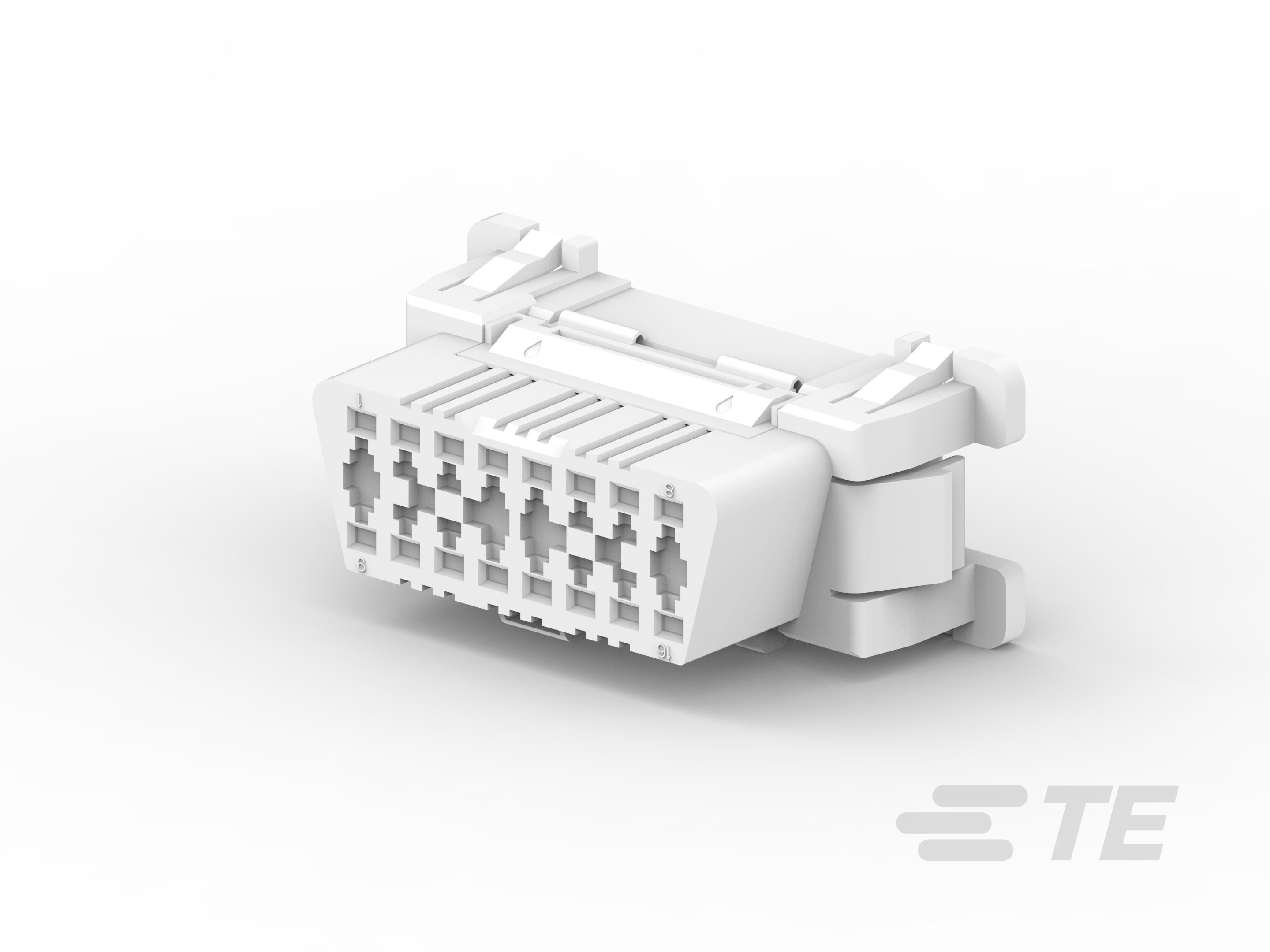

CONN PLUG HSG 16POS DIAGNOSTIC
179631-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 16POS DIAGNOSTIC
Description
General part information
179631-1
16 Position Housing, Housing for Female Terminals, Wire-to-Wire, 2.2 mm [.086 in] Centerline, Natural, Signal, Panel Mount, -40 – 85 °C [-40 – 185 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 179631-1 |
|---|---|
| Color | White |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Panel Mount |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
