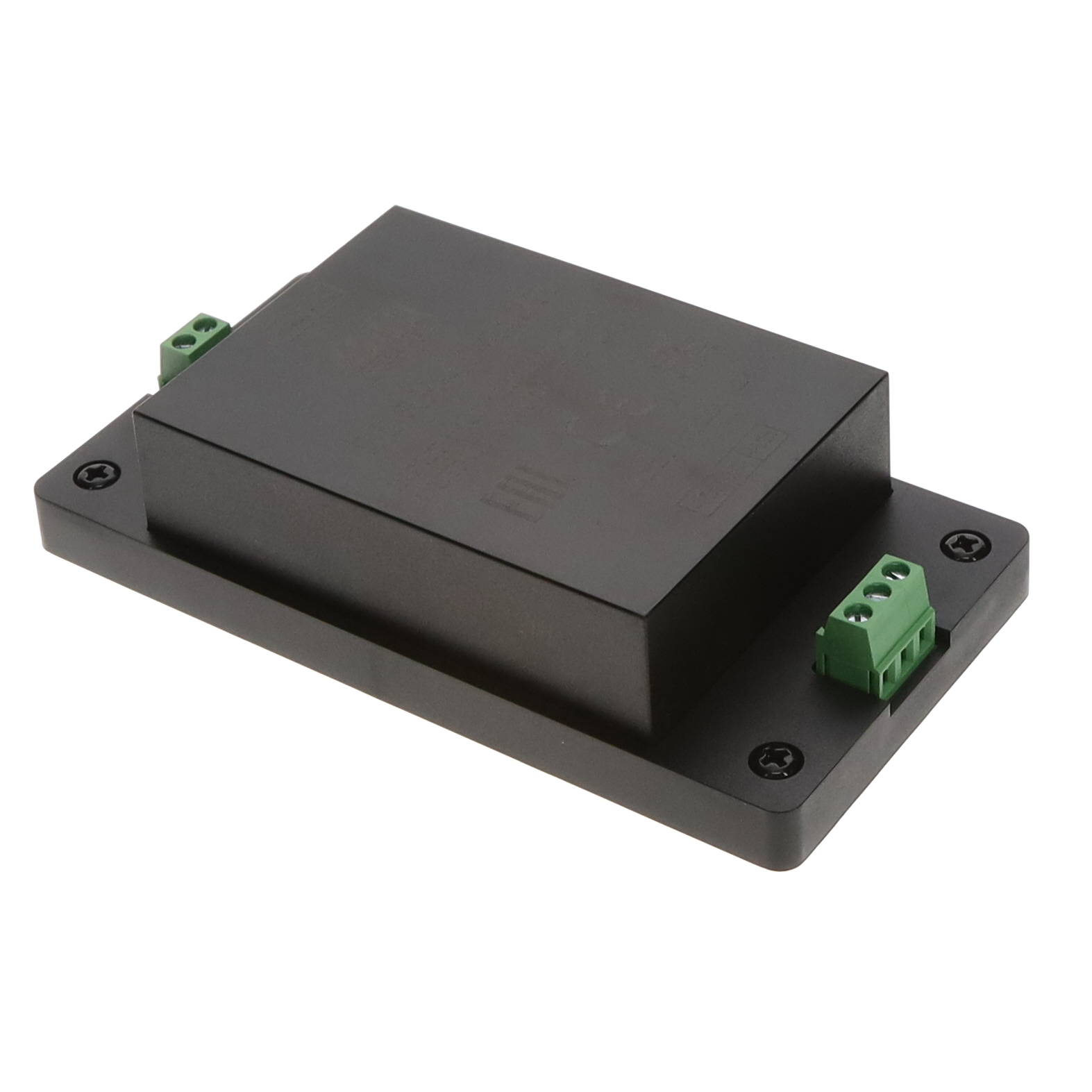

DDRH-45-24DR
ActiveMEAN WELL USA Inc.
I/P:150~1500VDC;O/P:24V/0~1.87A
DDRH-45-24DR
ActiveMEAN WELL USA Inc.
I/P:150~1500VDC;O/P:24V/0~1.87A
Description
General part information
DDRH-45-24DR
I/P:150~1500VDC;O/P:24V/0~1.87A
Technical Specifications
Parameters and characteristics for this part
| Specification | DDRH-45-24DR |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UKCA, CE, EAC |
| Current - Output (Max) | 1.87 A |
| DC Voltage - Input (Max) | 1500 V |
| DC Voltage - Input (Min) | 150 V |
| Efficiency | 86 % |
| Input Type | DC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 45 W |
| Size / Dimension Height | 1.71 in |
| Size / Dimension Length | 5.32 in |
| Size / Dimension Width | 2.76 in |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 24 V |
