2-34119-1
ActiveTE Connectivity AMP Connectors

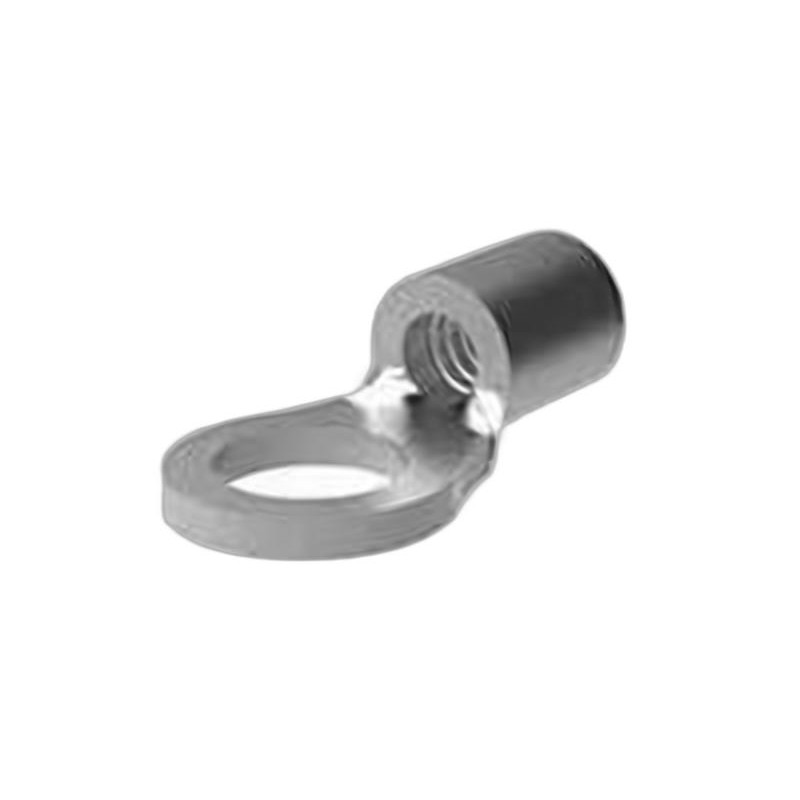

RING TONGUE TERMINAL 14-16AWG COPPER 12.19MM TIN T/R
2-34119-1
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL 14-16AWG COPPER 12.19MM TIN T/R
Description
General part information
2-34119-1
Closed Ring Tongue Terminal, 16 AWG, #4 / M2.5 Stud, 2.84 mm [.112 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-34119-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination, Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 0.48 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 4 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.25 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
