Description
General part information
DPE50BD

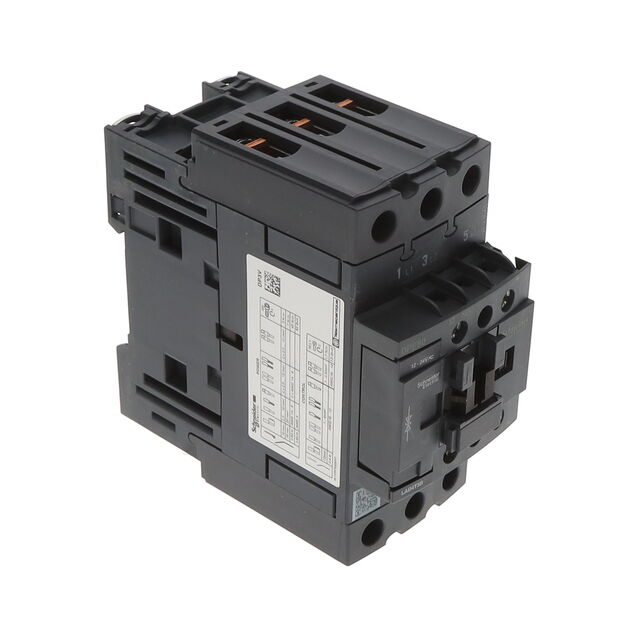

DPE50BD is a Easy TeSys DPE, nonreversing, IEC contactor. It has 3 poles (3NO), for motor control applications up to 50A/690V AC-3 (30HP at 480V). It provides a 24VDC coil, 1NO built-in auxiliary contacts, connection by screw clamp terminals. It is approved by CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1.
Technical Specifications
Parameters and characteristics for this part
| Specification | DPE50BD |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 50 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 V |
| Operate Time | 26 ms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
