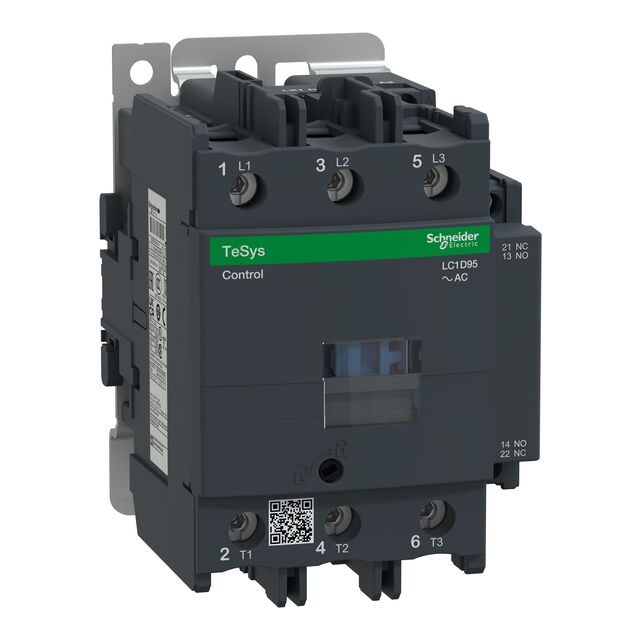

LC1D95FE7
ActiveSCHNEIDER ELECTRIC
CONTACTOR
LC1D95FE7
ActiveSCHNEIDER ELECTRIC
CONTACTOR
Description
General part information
LC1D95FE7
CONTACTOR
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D95FE7 |
|---|---|
| Coil Voltage | 115 VAC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 95 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 97.75 VAC |
| Must Release Voltage | 34.5 V |
| Must Release Voltage Type | AC |
| Operate Time | 35 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
