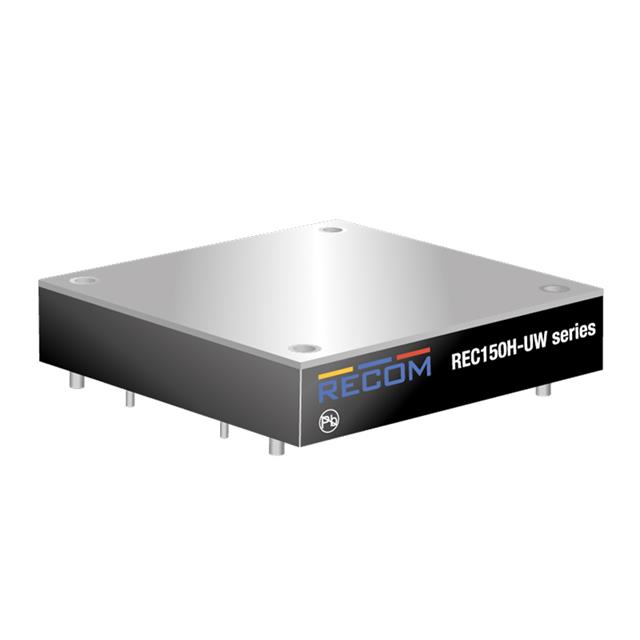

REC150H-4854SUW
ActiveRecom Power
150W DC/DC-CONVERTER 'POWERLINE'
REC150H-4854SUW
ActiveRecom Power
150W DC/DC-CONVERTER 'POWERLINE'
Description
General part information
REC150H-4854SUW
Isolated Module DC DC Converter 1 Output 54V 2.778A 9V - 75V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | REC150H-4854SUW |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 2.778 A |
| Efficiency | 89 % |
| Features | Remote Sense, Adjustable Output, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Half Brick |
| Package Name | Half Brick |
| Power (Watts) | 150 W |
| Size / Dimension Height | 0.5 in |
| Size / Dimension Length | 2.4 in |
| Size / Dimension Width | 2.28 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 75 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Output 1 | 54 V |
