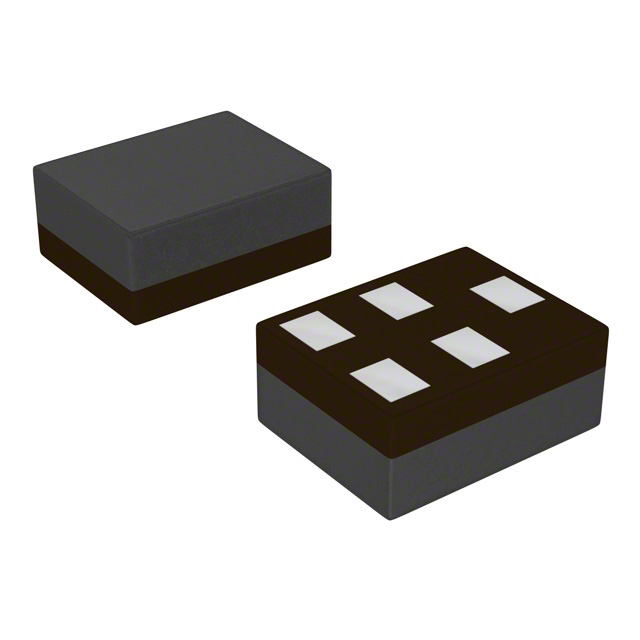

SF14-1575M5UBB1
ActiveKYOCERA AVX
FILTER SAW 1.57542GHZ 5SMD
SF14-1575M5UBB1
ActiveKYOCERA AVX
FILTER SAW 1.57542GHZ 5SMD
Description
General part information
SF14-1575M5UBB1
1.57542GHz Frequency GPS RF SAW Filter (Surface Acoustic Wave) 1.7dB 2MHz Bandwidth 5-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SF14-1575M5UBB1 |
|---|---|
| Applications | GPS |
| Bandwidth | 2 MHz |
| Frequency - Center | 1575.42 MHz |
| Height (Max) | 0.028 in |
| Insertion Loss | 1.7 dB |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD, No Lead |
| Size / Dimension Length | 0.055 in |
| Size / Dimension Width | 0.043 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
