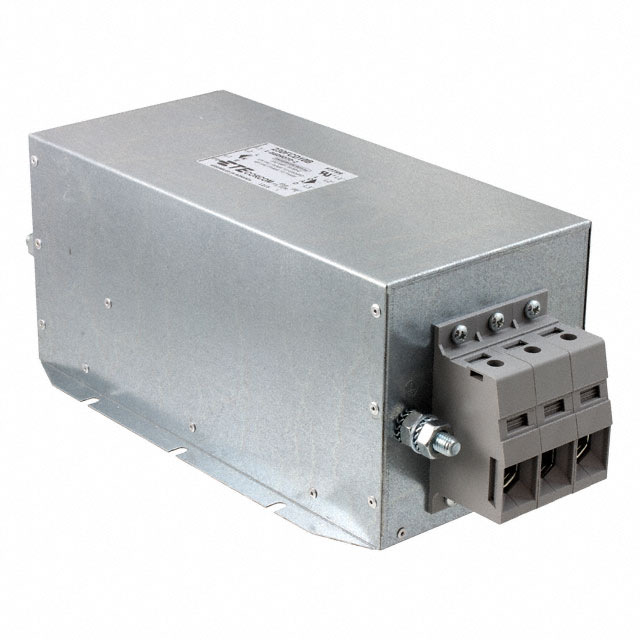

1-6609070-2
ObsoleteTE Connectivity AMP Connectors
LINE FILTER 230A CHASSIS MOUNT
1-6609070-2
ObsoleteTE Connectivity AMP Connectors
LINE FILTER 230A CHASSIS MOUNT
Description
General part information
1-6609070-2
Three Phase (Delta) EMC/EMI Line Filter 230 A 50/60Hz Single Stage Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-6609070-2 |
|---|---|
| Applications | General Purpose |
| Approval Agency | UL |
| Configuration | Single Stage |
| Current | 230 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -10 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC (Phase to Ground/Neutral) | 277 V |
| Voltage - Rated AC (Phase to Phase) | 480 V |
