009276002021106
ActiveKYOCERA AVX
WIRE-TO-BOARD CONNECTOR, 18 AWG, 9276 SERIES, SURFACE MOUNT, RECEPTACLE, 2, 2.5 MM ROHS COMPLIANT: YES
009276002021106
ActiveKYOCERA AVX
WIRE-TO-BOARD CONNECTOR, 18 AWG, 9276 SERIES, SURFACE MOUNT, RECEPTACLE, 2, 2.5 MM ROHS COMPLIANT: YES
Description
General part information
009276002021106

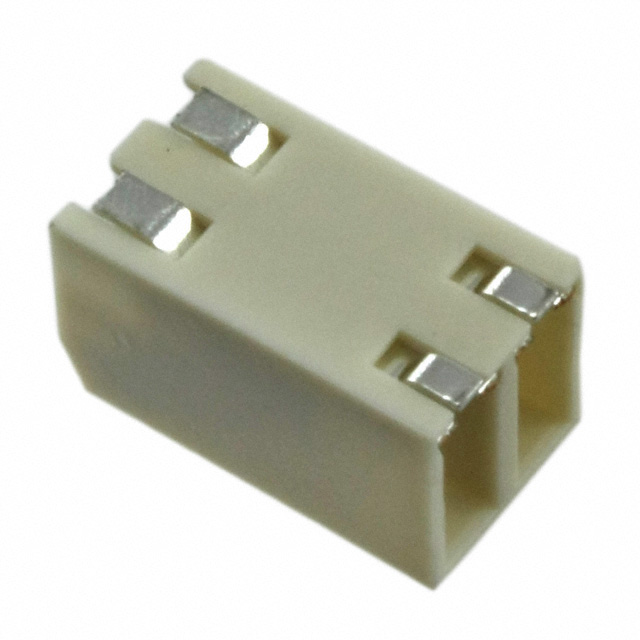

2 Position Wire to Board Terminal Block Horizontal with Board 0.098" (2.50mm) Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 009276002021106 |
|---|---|
| Color | White |
| Contact Material | Copper Alloy |
| Current | 6 A |
| Housing Material | Nylon 4/6, Glass Filled, PA46, Polyamide |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.098 in |
| Plating | Tin Plated |
| Positions Per Level | 2 |
| Voltage | 250 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
