B82479A1154M000
ActiveEPCOS - TDK Electronics
FIXED IND 150UH 1.5A 250MOHM SMD
B82479A1154M000
ActiveEPCOS - TDK Electronics
FIXED IND 150UH 1.5A 250MOHM SMD
Description
General part information
B82479A1154M000

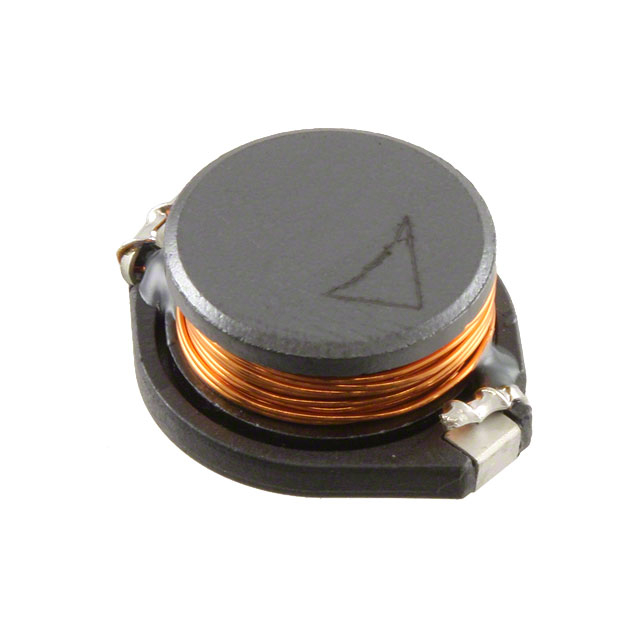

150 µH Unshielded Drum Core, Wirewound Inductor 1.5 A 250mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82479A1154M000 |
|---|---|
| Current - Saturation (Isat) | 2.6 A |
| Current Rating | 1.5 A |
| DC Resistance (DCR) (Max) | 250 mOhm |
| Height - Seated (Max) | 0.28 in |
| Inductance | 150 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.73 in |
| Size / Dimension Width | 0.6 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
